GOPŁO minesweepers (project 207P, 1982 - 1991)

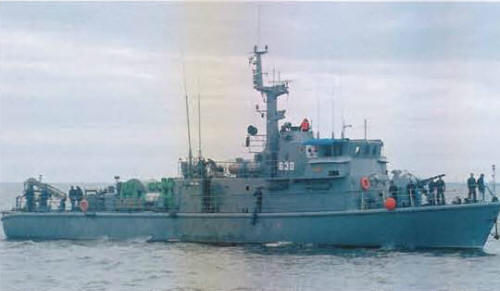

Gopło 2008

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Gopło 630   Stocnia Marynarki Wojennej, Gdynia   16.4.1981 11.3.1982 in service (2019)
Gardno 631   Stocnia Marynarki Wojennej, Gdynia   23.6.1983 31.3.1984 in service (2019)
Bukowo 632   Stocnia Marynarki Wojennej, Gdynia   28.7.1984 23.6.1985 in service (2019)
Dąbie 633   Stocnia Marynarki Wojennej, Gdynia   21.6.1985 11.5.1986 in service (2019)
Jamno 634   Stocnia Marynarki Wojennej, Gdynia   11.2.1986 11.10.1986 in service (2019)
Mielno 635   Stocnia Marynarki Wojennej, Gdynia   27.6.1986 9.5.1987 in service (2019)
Wicko 636   Stocnia Marynarki Wojennej, Gdynia   20.3.1987 12.10.1987 in service (2019)
Resko 637   Stocnia Marynarki Wojennej, Gdynia   1.10.1987 26.3.1988 in service (2019)
Sarbsko 638   Stocnia Marynarki Wojennej, Gdynia   10.5.1988 12.10.1988 in service (2019)
Necko 639   Stocnia Marynarki Wojennej, Gdynia   21.11.1988 9.5.1989 in service (2019)
Nakło 640   Stocnia Marynarki Wojennej, Gdynia   29.5.1989 2.3.1990 in service (2019)
Drużno 641   Stocnia Marynarki Wojennej, Gdynia   29.11.1989 21.9.1990 in service (2019)
Hańcza 642   Stocnia Marynarki Wojennej, Gdynia   9.7.1990 1.3.1991 in service (2019)


Technical data


Displacement standard, t

210

Displacement full, t

225

Length, m

36.5 pp 38.5 oa

Breadth, m

7.35

Draught, m

1.78 hull

No of shafts

2

Machinery

2 M-401A diesels

Power, h. p.

1875

Max speed, kts

14.5

Fuel, t

diesel oil

Endurance, nm(kts)

1100(9)

Armament

630, 631: 1 x 2 - 23/87 ZSU-23-2 Wrobel-1, 2 DCR (12), 6 - 24 mines, MMTK-1 mechanical, TEM-PE-1 magnetic, MTA-1 acoustic minesweeping gear

632-642: 1 x (2 Strela-2M SAM + 2 - 23/87) ZU-23-2MR Wrobel-2MR (6 Strela-2M), 2 DCR (12), 6 - 24 mines, MMTK-1 mechanical, TEM-PE-1 magnetic, MTA-1 acoustic minesweeping gear

Electronic equipment

SRN-302 radar, SHL-100 Flaming-A, SHL-200 sonars

Complement

49



Standard scale images


<i>Resko </i>2000
Resko 2000


Graphics


<i>Gopło </i>2008
Gopło 2008


Project history

Gopło was built under project 207D, later ship under project 207P. Low-magnetic field minesweepers with GRP hull.

Modernizations

1980s, Gopło, Gardno: - 1 x 2 - 23/87; + 1 x (2 Strela-2M SAM + 2 - 23/87) ZU-23-2MR Wrobel-2MR (6 Strela-2M)

Naval service

No significant events.
