HYDRA minelayers (1911 - 1912)





Hydra

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Hydra     Rijkswerf Amsterdam 10.1910 7.7.1911 1.1912 sunk 15.5.1940
Medusa     Rijkswerf Amsterdam 12.1910 23.6.1911 11.1911 to United Kingdom 7.1940 - 1.1946, minesweeper tender 1.1946


Technical data


Displacement normal, t

593

Displacement full, t

670

Length, m

49.7

Breadth, m

9.00

Draught, m

2.75

No of shafts

2

Machinery

2 VTE, 2 cylindrical Werkspoor boilers

Power, h. p.

900

Max speed, kts

11

Fuel, t

coal 72

Endurance, nm(kts)

1400(6)

Armament

3 x 1 - 75/52 SA Nr.2, 2 x 1 - 12.7/90, 70 mines

Complement

59



Standard scale images

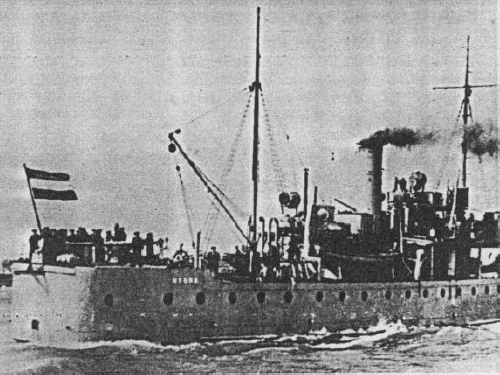

<i>Hydra</i> 1939
Hydra 1939


Graphics


<i>Hydra</i>
Hydra


Project history

Rather successful coastal minelayers, served as prototypes for several series of the ships of the given type built for service in mother country waters and in the East Indies. They were projected on the basis of ferries and, despite the small dimensions, were equipped with covered mine deck. They have appeared inexpensive and simple in operation, and low speed was considered sufficient for actions in inshore waters.

Modernizations

None.

Naval service

Hydra was damaged 15.5.1940 by German anti-tank artillery and ran aground. Medusa since 31.7.1940 till 15.1.1946 served under British flag and later converted to minesweeper tender. She was stricken 5.6.1964 and sold on demolition 25.9.1964.
