V 2nd class spar torpedo boats (1879)

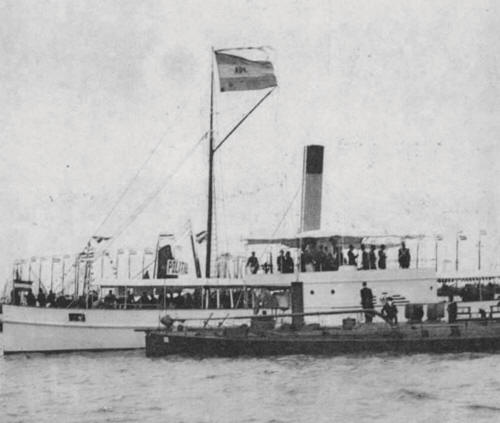

No.IX
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
No.V No. VI No. VII No. VIII No. IX |
Thornycroft, Chiswick, UK: No.V - IX |
1879: No.V - IX |
none |
none |
1903: No.VI, VII 1905: No.V, VIII, IX |
Technical data
| Displacement normal, t | 29 |
|---|---|
| Displacement full, t | |
| Length, m | 24.6 |
| Breadth, m | 3.15 |
| Draught, m | 1.60 |
| No of shafts | 1 |
| Machinery | 1 HDA, 1 locomotive boiler |
| Power, h. p. | 250 |
| Max speed, kts | 18 |
| Fuel, t | coal |
| Endurance, nm(kts) | |
| Armament | 2 spar torpedoes |
| Complement | 11 |
Standard scale images
similar No.XIII 1879
Graphics
No.IX
Project history
2nd class torpedo boats with spar torpedoes.
Modernizations
None.
Naval service
No significant events.
