K1 MICHIEL GARDEYN torpedo boats (1905)





K2 Christiaan Cornelis

Ships


Names Builders Commissioned Losses Transfers Discarding

K1 Michiel Gardeyn

K2 Christiaan Cornelis

K3 Willem Warmont

Fijenoord, Schiedam: K1 Michiel Gardeyn, K2 Christiaan Cornelis, K3 Willem Warmont

1905: K1 Michiel Gardeyn, K2 Christiaan Cornelis, K3 Willem Warmont

K2 Christiaan Cornelis (13.5.1940)

None

1921: K1 Michiel Gardeyn, K3 Willem Warmont



Technical data


Displacement normal, t

47

Displacement full, t
Length, m

30.0

Breadth, m

3.60

Draught, m

1.72

No of shafts

1

Machinery

1 VTE, 1 cylindrical boiler

Power, h. p.

560

Max speed, kts

18.7

Fuel, t

coal 5

Endurance, nm(kts)



Armament

2 x 1 - 37/20 Hotchkiss, 2 - 356 TT (bow)

Complement

12



Graphics

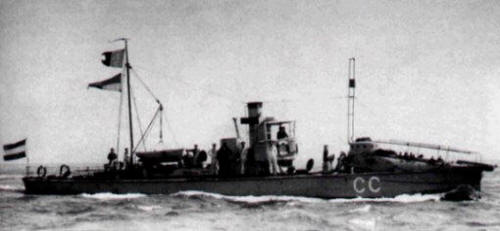

<i>K2 Christiaan Cornelis</i>
K2 Christiaan Cornelis


Project history

Small 2nd class torpedo boats. In days of WWI they were reclassified as patrols, and K2 was converted in 1921 to river gunboat.

Modernizations

1914-1915, all: - 2 - 356 TT

1921, K2: - 1 x 1 - 37/20

Naval service

K2 Christiaan Cornelis, converted to river gunboat, was damaged by German paratroopers and scuttled at Rotterdam 13.5.1940.
