L9609 small landing ship (1954/1960)





L9609

Ships


Name No Yard No Builder Laid down Launched Comm Fate
(ex-Kais) L9609   Arnhemse Scheepsbouw Mij 6.1954 4.9.1954 10.1954 // 6.1960 stricken 9.1969


Technical data


Displacement standard, t
Displacement full, t

415

Length, m

46.0

Breadth, m

11.3

Draught, m

2.70

No of shafts

2

Machinery

2 Kromhout diesels

Power, h. p.

600

Max speed, kts

8.5

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

2 x 1 - 20/70 Mk 4

Military load
Electronic equipmentnav. radar
Complement

22

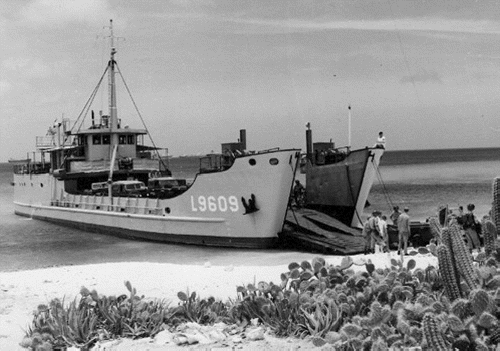

Graphics


L9609
L9609


Project history

Former ferry built for Netherlands New Guinea Petroleum Co, later transferred to the Navy.

Modernizations

None.

Naval service

No significant events.
