BANCKERT destroyer (1941/1945)

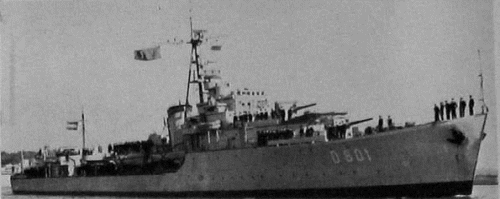

Banckert 1953 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Banckert (ex-Quilliam) J1, 1950- D801 633 Hawthorn Leslie, Hebburn, UK 8/1941 29.11.1941 10/1942 // 11.1945 stricken 10.1956


Technical data


Displacement standard, t

1705

Displacement full, t

2425

Length, m

103.5 pp 109.2 oa

Breadth, m

10.9

Draught, m

4.22 deep load

No of shafts

2

Machinery

2 sets Parsons geared steam turbines, 2 Admiralty 3-drum boilers

Power, h. p.

40000

Max speed, kts

36.75

Fuel, t

oil 588

Endurance, nm(kts)4675(20)
Armament

4 x 1 - 120/45 QF Mk IX, 1 x 4 - 40/39 QF Mk VIII, 2 x 2 - 20/70 Oerlikon Mk IV, 4 x 1 - 20/70 Oerlikon Mk IV, 2 x 4 - 533 TT, 4 DCT, 3 DCR (70 - 130 DC)

Electronic equipmenttype 271 or type 272, type 285, type 290 or type 291 radars, type 144 sonar
Complement

225



Standard scale images


<i>Banckert</i> 1945
Banckert 1945


Graphics


<i>Banckert</i> 1953 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Banckert 1953 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Former RN destroyer of Q class.

Modernizations

None.

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
