No336 patrol boats (1986-1987/1990)
1990
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
336-338, later- 424-426 |
Brodotehnika, Split, Yugoslavia: 336-338 |
1986-1987 // 1990: 336-338 |
none |
none |
in service (2019): 424-426 |
Technical data
| Displacement standard, t | 80 |
|---|---|
| Displacement full, t | 90 |
| Length, m | 25.0 pp 27.4 oa |
| Breadth, m | 6.55 |
| Draught, m | 1.15 |
| No of shafts | 3 |
| Machinery | 3 diesels |
| Power, h. p. | 4350 |
| Max speed, kts | 32 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 800(20) |
| Armament | 2 x 4 - 20/70 M75 |
| Electronic equipment | Decca 1226 radar |
| Complement | 17 |

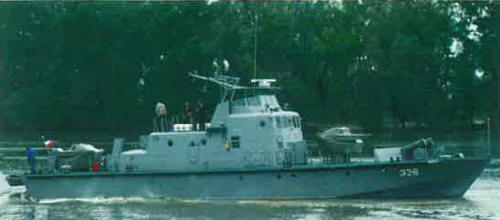

Graphics
1990
Project history
Fast patrol boats were built for an African country and completed in 1986-1987, but not delivered. Sold to Burmese Navy and delivered in October 1990.
Modernizations
None.
Naval service
No significant events.
