YANGYANG minehunters (1999-2005)

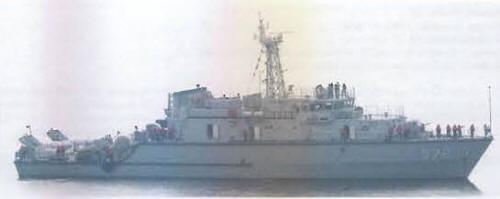

Ongjin 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 양양 [Yangyang] | 571 | Kangnam Swallow Craft | 25.2.1999 | 29.12.1999 | in service (2019) | ||
| 옹진 [Ongjin] | 572 | Kangnam Swallow Craft | 28.12.2002 | 28.10.2003 | in service (2019) | ||
| 해남 [Haenam] | 573 | Kangnam Swallow Craft | 18.2.2004 | 12.11.2004 | in service (2019) |
Technical data
| Displacement standard, t | 730 |
|---|---|
| Displacement full, t | 880 |
| Length, m | 59.4 |
| Breadth, m | 10.5 |
| Draught, m | 3.00 |
| No of shafts | 2 Voith-Schneider |
| Machinery | 2 MTU diesels |
| Power, h. p. | 4000 |
| Max speed, kts | 15 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3000(12) |
| Armament | 1 x 3 - 20/76 Sea Vulcan, 2 x 1 - 7.6/90, 2x Pluto Plus USV, fitted for mechanical and acoustic-magnetic minesweeping gear |
| Electronic equipment | Raytheon radar, type 2093 sonar, TSM 2061 Mk 3 CCS |
| Complement | 61 |
Standard scale images
Yangyang 2010
Graphics
Ongjin 2008
Project history
Combination minehunters/minesweepers, enlarged type SK5000. GRP hull.
Modernizations
None.
Naval service
No significant events.
