SOKUTEN coastal minelayers - netlayers (1938 - 1940), HIRASHIMA coastal minelayers - netlayers (1940 - 1943), AJIRO coastal minelayer - netlayer (1944)





  Saishu after war

Ships


Name No Yard No Builder Laid down Launched Comp Fate Modification
測天 [Sokuten]     Mitsubishi, Yokohama 6.1937 27.4.1938 12.1938 sunk 25.7.1944 Sokuten
白神 [Shirakami]     Ishikawajima, Tokyo 9.1937 25.6.1938 4.1939 collision 3.3.1944 Sokuten
成生 [Naryu]     Mitsubishi, Yokohama 3.1939 28.8.1939 6.1940 sunk 16.2.1945 Sokuten
巨済 [Kyosai]     Ishikawajima, Tokyo 6.1938 29.6.1939 12.1939 surrendered 8.1945, to United Kingdom 11.1947, BU Sokuten
浮島 [Ukishima]     Ishikawajima, Tokyo 7.1939 9.12.1939 10.1940 lost 16.11.1943 Sokuten
平島 [Hirashima]     Mitsubishi, Yokohama 9.1939 6.6.1940 12.1940 sunk 27.7.1943 Hirashima
澎湖 [Hoko]     Mitsui, Tamatsukuri 11.1940 8.9.1941 12.1941 sunk 29.8.1943 Hirashima
石埼 [Ishizaki]     Mitsubishi, Yokohama 3.1941 13.8.1941 2.1942 surrendered 8.1945, to USA 10.1947, BU Hirashima
鷹島 [Takashima]     Tsurumi, Yokohama 12.1940 18.10.1941 3.1942 sunk 10.10.1944 Hirashima
済州 [Saishu]     Sasebo K K 1.1941 15.11.1941 4.1942 surrendered 8.1945, to China 10.1947 (永靖 [Yung Ching]) Hirashima
新井埼 [Niizaki]     Mitsui, Tamano 7.1941 2.3.1942 8.1942 surrendered 8.1945, BU 1947 Hirashima
由利島 [Yurijima]     Tsurumi, Yokohama 10.1941 4.7.1942 11.1942 sunk 14.1.1945 Hirashima
怒和島 [Nuwashima]     Osaka SB, Osaka 11.1941 31.7.1942 11.1942 sunk 7.5.1945 Hirashima
前島 [Maeshima]     Nippon Kokan 7.1942 18.4.1943 7.1943 sunk 18.10.1944 Hirashima
網代 [Ajiro]     Hitachi, Innoshima 9/1943 4/1944 7.1944 sunk 1.10.1944 Ajiro


Technical data


Displacement standard, t

720

Displacement normal, t

750

Length, m

69.5 pp 73.5 wl 75.5 oa

Breadth, m

7.85

Draught, m

2.60

No of shafts

2

Machinery

2 diesels

Power, h. p.

Sokuten class: 3600

Hirashima, Ajiro classes: 3500

Max speed, kts

20

Fuel, t

Sokuten, Hirashima classes: diesel oil 35

Ajiro class: diesel oil 53

Endurance, nm(kts)

Sokuten, Hirashima classes: 2550(14)

Armament

Sokuten class: 1 x 2 - 40/62 HI 91-shiki, 1 x 2 - 13.2/76, 120 mines or nets

Hirashima class: 1 x 1 - 76/40 11-shiki, 1 x 2 - 13.2/76, 120 mines or nets

Ajiro class: 1 x 1 - 76/40 11-shiki, 2 x 3 - 25/60 96-shiki, 120 mines or nets, 4 DCT (36)

Electronic equipment

93-shiki sonar, 93-shiki hydrophone

Complement

100



Standard scale images


<i>Sokuten</i> 1941
Sokuten 1941


Graphics


  <i>Saishu</i> after war
  Saishu after war
<i> Hirashima</i>

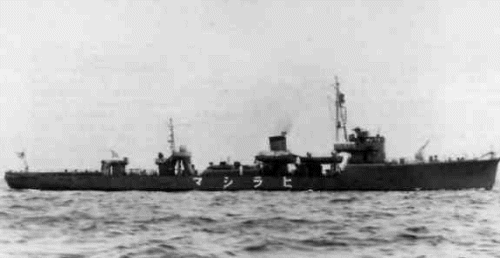

Hirashima


Project history

Built under 3rd, 4th and 5th Supplementary programmes of 1937 (Sokuten class), 1939 (Hirashima class) and 1941 (Ajiro class). In total 5, 10 and 15 ships respectively have been ordered, but building plans of only Sokuten class in full have been fulfilled. Orders for one ship of Hirashima (Moroshima) and 13 for Ajiro (Kamishima, Shinoshima, Muso, Namizaki, Terajima, Kyobun, Kosei, Futsutsu, Sugashima, Niijima, Hikoshima, Himeshima, Tateshima) classes were cancelled in 1943.

Multi-purpose minelayers-netlayers. Intended for defence of bases and ports. Represented moderated variant of Hatsutaka class. Among themselves Sokuten and Hirashima classes insignificantly different by only armament. Ships of this classes possessed good seaworthiness and high manoeuvrability.

Modernizations

1943, all completed Sokuten and Hirashima groups: diesel oil stowage was increased to 53t; + 4 DCT (36).

1944, all survived Sokuten and Hirashima classes: - 1 x 2 - 13.2/76; + 2 x 3 - 25/60 96-shiki

late 1944, Saishu: + 3 x 3 - 25/60 96-shiki

Naval service

Hirashima 27.7.1943 was sunk at coast of Japan by US submarine Sawfish. Hoko 28.9.1943 was sunk off Buka by US aircraft. Ukishima 16.11.1943 lost by unknown cause SE off Hatsushima, possibly sunk by US submarine. Shirakami 3.3.1944 at Urup (Kuriles) during a storm collided with s/s Nichiran Maru and has sunk. Sokuten 25.7.1944 was sunk off Palau by US carrier aircraft. Ajiro 1.10.1944 was sunk off Bonin by US submarine Snapper. Takashima 10.10.1944 was sunk at Okinawa by US carrier aircraft. Maeshima 18.10.1944 ran aground at evasion from attack of US carrier aircraft at Luzon. Yurishima 14.1.1945 was sunk at eastern coast of Malacca by US submarine Cobia. Naryu 16.2.1945 was sunk S off Honshu by US submarine Sennet. Nuwashima 7.5.1945 was hard damaged at Kyushu by US aircraft (aft part was broken off) and ran ashore, subsequently she was broken up. Kyosai 6.8.1945 was hard damaged by US carrier aircraft.

Saishu was transferred to China on reparation in 1947.
