Otaka 2008

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
はやぶさ [Hayabusa]	PG824		Mitsubishi, Shimonoseki	9.11.2000	13.6.2001	25.3.2002	in service (2019)
わかたか [Wakataka]	PG825		Mitsubishi, Shimonoseki	9.11.2000	13.9.2001	11.3.2002	in service (2019)

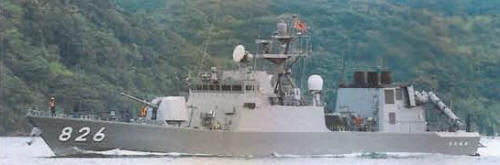

おおたか [Otaka]	PG826		Mitsubishi, Shimonoseki	2.10.2001	13.5.2002	24.3.2003	in service (2019)
くまたか [Kumataka]	PG827		Mitsubishi, Shimonoseki	2.10.2001	2.8.2002	24.3.2003	in service (2019)
うみたか [Umitaka]	PG828		Mitsubishi, Shimonoseki	4.10.2002	21.5.2003	24.3.2004	in service (2019)
しらたか [Shirataka]	PG829		Mitsubishi, Shimonoseki	4.10.2002	8.8.2003	24.3.2004	in service (2019)

Technical data

Displacement standard, t	200
Displacement full, t	240
Length, m	50.1
Breadth, m	8.40
Draught, m	1.70
No of shafts	3 waterjets
Machinery	3 General Electric LM-500 gas turbines
Power, h. p.	16200
Max speed, kts	44
Fuel, t	gas turbine oil
Endurance, nm(kts)
Armament	2 x 2 SSM-1B SSM (4 SSM-1B), 1 x 1 - 76/62 OTO-Melara Compact, 2 x 1 - 12.7/90
Electronic equipment	OPS-18-3, OPS-20, FCS-2-31 radars, OAX-2 e/o director, NOLR-9B ECM suite, 2x Mk 36 SRBOC decoy RL, OYQ-8 CCS
Complement	21

Standard scale images

Graphics

Project history

Substituted for further hydrofoil construction. More than three times the displacement of the older PG01 series. Carry a 6.3m RIB amidships for boarding and inspection duties. The 76-mm gun has a faceted gunhouse to reduce radar reflectivity.

Modernizations

None.

Naval service

No significant events.
