KASHIMA training / command / escort ship (1995)





Kashima 2008

Ships


Name No Yard No Builder Laid down Launched Comp Fate
かしま [Kashima] TV3508   Hitachi, Maizuru 20.4.1993 23.2.1994 26.1.1995 in service (2019)


Technical data


Displacement standard, t

4050

Displacement full, t

5400

Length, m

143.0

Breadth, m

18.0

Draught, m

4.60

No of shafts

2

Machinery

CODOG: 2 Kawasaki-Rolls-Royce Spey SM-1C gas turbines / 2 Mitsubishi S16U MTK diesels

Power, h. p.

27000 / 12000

Max speed, kts

25

Fuel, t

diesel / gas turbine oil

Endurance, nm(kts)7000(18)
Armament

1 x 1 - 76/62 OTO-Melara Compact, 2 x 1 - 12.7/90, 2 x 3 - 324 68-shiki TT, helicopter deck

Electronic equipment

OPS-18, OPS-20, OPS-14C, FCS-2-22F radars, OQS-4 sonar, 2x Mk 36 SRBOC decoy RL, OYQ-6C CCS

Complement

220 + 140 trainees



Standard scale images

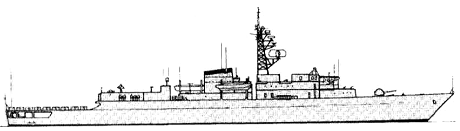

<i>Kashima </i>2000
Kashima 2000


Graphics

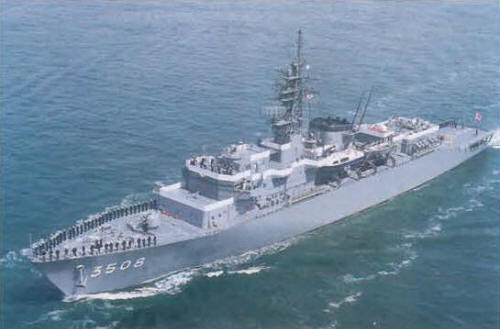

<i>Kashima </i>2008
Kashima 2008


Project history

Training ship, having modest wartime potential as a command and possibly patrol ship. The large open deck aft acts as a ceremonial, assembly and exercise area but can also accept helicopters. Built under merchant standards.

Modernizations

None.

Naval service

No significant events.
