Hiei 1980

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
はるな [Haruna]	DDH141		Mitsubishi, Nagasaki	19.3.1970	1.2.1972	22.2.1973	stricken 3.2009
ひえい [Hiei]	DDH142		IHI, Tokyo	8.3.1972	13.8.1973	27.11.1974	stricken 3.2011

Technical data

Displacement standard, t	4700
Displacement full, t	6300
Length, m	153.0
Breadth, m	17.5
Draught, m	5.10 max
No of shafts	2
Machinery	141: 2 sets Mitsubishi geared steam turbines, 2 Mitsubishi boilers 142: 2 sets IHI geared steam turbines, 2 IHI boilers
Power, h. p.	70000
Max speed, kts	32
Fuel, t	oil
Endurance, nm(kts)
Armament	1 x 8 ASROC ASuR (16 RUR-5), 2 x 1 - 127/54 Mk 42, 2 x 3 - 324 type 68 TT, 3 helicopters (HSS-2A Sea King)
Electronic equipment	OPS-11, OPS-17, 2x FCS-1A radars, OQS-3 sonar, NOLR-5 ECM suite, OYQ-3 CCS
Complement	340

Standard scale images

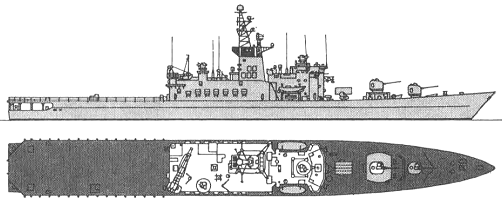

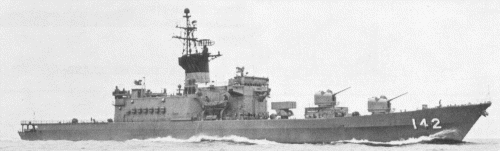

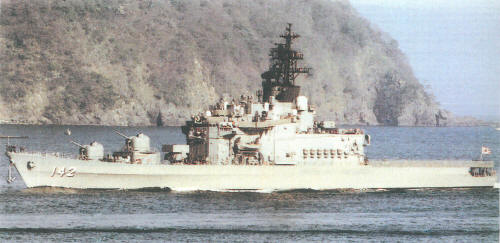

Graphics

Project history

The Haruna class and the follow-on Shirane were the only destroyer-size ships in the world which carried three large ASW (HSS-2) helicopters. They had a strong ASW armament but were originally weak against an air and surface targets. The funnel was located somewhat off-centre towards the port side of the ship, thus permitting space for the third helicopter in the hangar. Fin stabilisers were installed at the bilge keel, and the 'bear trap' landing system was installed. The ships were used as flagships for escort flotillas.

Modernizations 10.

1987, Haruna; 3.1989, Hiei: - OPS-11, OPS-17 radars, NOLR-5 ECM suite, OYQ-3 CCS; + 1 x 8 Sea Sparrow SAM (16 RIM-7), 2 x 6 - 20/76 Mk 15 Phalanx, OPN-11, OPS-11C, OPS-28, FCS-2-12E, 2x Mk 90 radars, NOLQ-1-3, OLR-9 ECM suites, 4x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy, OYQ-6 CCS

Naval service

No significant events.
