TESHIO medium patrol vessel (1995)

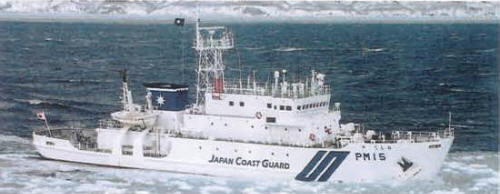

Teshio 2002
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| てしお [Teshio] | PM15 | NKK, Tsurumi | 7.10.1994 | 20.4.1995 | 19.10.1995 | in service (2019) |
Technical data
| Displacement standard, t | 563 |
|---|---|
| Displacement normal, t | 883 |
| Length, m | 54.9 |
| Breadth, m | 10.2 wl 10.6 oa |
| Draught, m | 3.30 mean 4.00 max |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | 3600 |
| Max speed, kts | 14.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 3 - 20/76 JM-61-MB Sea Vulcan |
| Electronic equipment | 2x JMA radars |
| Complement | 35 |
Standard scale images
Teshio 2000
Graphics
Teshio 2002
Project history
Icebreaking hull with 5.0m molded depth; able to break 75cm ice by ramming and 55cm ice at 3kts continuous. Hullform is unusual tor an icebreaking hull in having a hard chine amidships and single-curvature hullform over most of the middle portion of the hull. A television surveillance camera is fitted atop the pilothouse.
Modernizations
None.
Naval service
No significant events.
