Hateruma 2008

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate

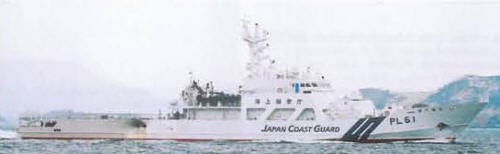

はてるま [Hateruma]	PL61		Mitsui, Tamano	7.2.2007	10.8.2007	31.3.2008	in service (2019)
はかた [Hakata], 10.2011- いしがき [Ishigaki]	PL62		Mitsui, Tamano	20.11.2007	19.6.2008	2.2.2009	in service (2019)
よなくに [Yonaguni], 10.2016- くにがみ [Kunigami]	PL63		Mitsui, Tamano	20.11.2007	19.6.2008	2.2.2009	in service (2019)
もとぶ [Motobu], 3.2012- しもきた [Shimokita]	PL64		Mitsui, Tamano	1.3.2008	30.9.2008	3.3.2009	in service (2019)
くにがみ [Kunigami], 3.2012- しれとこ [Shiretoko]	PL65		Mitsui, Tamano	1.3.2008	30.9.2008	12.3.2009	in service (2019)
しきね [Shikine]	PL66		Mitsubishi, Shimonoseki	15.7.2008	16.4.2009	7.10.2009	in service (2019)
あまぎ [Amagi]	PL67		Mitsui, Tamano	7.11.2008	25.9.2009	11.3.2010	in service (2019)
すずか [Suzuka]	PL68		Mitsui, Tamano	13.2.2009	25.9.2009	11.3.2010	in service (2019)
こしき [Koshiki]	PL69		Mitsubishi, Shimonoseki	13.2.2009	30.9.2009	9.3.2010	in service (2019)

Technical data

Displacement standard, t	1000
Displacement normal, t	1350
Length, m	89.0
Breadth, m	11.0
Draught, m	4.00
No of shafts	2 waterjets
Machinery	4 diesels
Power, h. p.
Max speed, kts	30
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	1 x 1 - 30/80 Mk 44 Bushmaster II, helicopter deck
Electronic equipment	2x JMA radars, e/o director
Complement	30

Standard scale images

Graphics

Project history

Fitted with a helicopter landing platform but no hangar. Acquisition and tracking equipment includes a LIDAR (Light Detection And Banging) system. High degree of automation permits reduced crew numbers for a ship this size. Launch and recovery cranes are fitted for RIBs up to 7 m. Have at least one firefighting monitor mounted forward of the 30-mm gun.

Modernizations

None.

Naval service

No significant events.
