Miyake 1974

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
くなしり [Kunashiri]	PM65		Maizuru HI, Maizuru			3.1969	deleted 7.1998
みなべ [Minabe]	PM66		Maizuru HI, Maizuru			3.1970	deleted 7.1998
さろべつ [Sarobetsu]	PM67		Maizuru HI, Maizuru			3.1971	deleted 1.2001
かみしま [Kamishima]	PM68		Usuki Tekkojo, Usuki			1.1972	deleted 2.2003

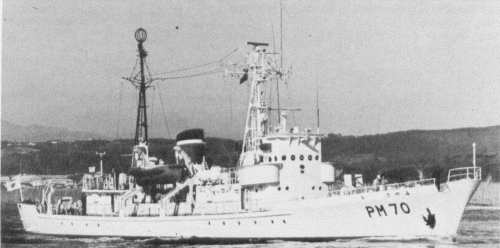

みやけ [Miyake]	PM70		Tohoku Zosen, Shiogama			1.1973	deleted 2.2002
あわじ [Awaji]	PM71		Usuki Tekkojo, Usuki			1.1973	deleted 2.2001
やえやま [Yaeyama]	PM72		Usuki Tekkojo, Usuki			12.1972	deleted 2.2003

Technical data

Displacement standard, t	498
Displacement full, t	574
Length, m	58.0
Breadth, m	7.38
Draught, m	2.40
No of shafts	2
Machinery	PM65-68: 2 Niigata 6MF32H diesels PM70-72: 2 Niigata 6M31EX diesels
Power, h. p.	PM65-68: 2600 PM70-72: 3000
Max speed, kts	PM65-68: 17 PM70-72: 17.5
Fuel, t	diesel oil
Endurance, nm(kts)	3040(16)
Armament	1 x 1 - 20/70 Mk 10
Electronic equipment	JMA 1576, JMA 1596 radars
Complement	40

Standard scale images

Graphics

Project history

Medium patrols of 350-M3 class.

Modernizations

2000s, all survived: - 1 x 1 - 20/70; + 1 x 1 - 12.7/90

Naval service

No significant events.
