Uraga 2008

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
うらが [Uraga]	MST463		Hitachi, Maizuru	19.5.1995	22.5.1996	19.3.1997	in service (2019)
ぶんご [Bungo]	MST464		Mitsui, Tamano	4.7.1996	24.4.1997	23.3.1998	in service (2019)

100 - 1000 t displacement/ BRT tonnage vessels

Name No Yard No Builder Laid down Launched Comp Fate うらが [Uraga] MST463   Hitachi, Maizuru 19.5.1995 22.5.1996 19.3.1997 in service (2019) ぶんご [Bungo] MST464   Mitsui, Tamano 4.7.1996 24.4.1997 23.3.1998 in service (2019)

Technical data

Displacement standard, t	5650
Displacement normal, t	6850
Length, m	136.0 pp 141.0 oa
Breadth, m	22.0
Draught, m	5.40
No of shafts	2
Machinery	2 Mitsui 12V 42MA diesels
Power, h. p.	19500
Max speed, kts	22
Fuel, t	diesel oil
Endurance, nm(kts)	4600(20)
Armament	463: 2 x 1 - 20/70 Mk 10, 230 mines, 1 helicopter (MH-53E) 464: 1 x 1 - 76/62 OTO-Melara Compact, 2 x 1 - 20/70 Mk 10, 230 mines, 1 helicopter (MH-53E)
Electronic equipment	463: OPS-14B, OPS-18 radars, ZQS-1B sonar 464: OPS-14B, OPS-18, FCS-2-21A radars, ZQS-1B sonar
Complement	160

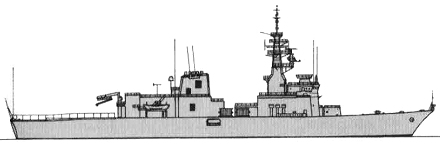

Standard scale images

Graphics

Project history

Hull has bulbous forefoot at the bow. Have a hangar and flight deck for one MH-53E mine-countermeasures helicopter. There is a stern door centerline, served by an articulating ramp, to permit the service and resupply of craft being supported. Flanking the stern door on either side on two deck levels are doors covering 4 mine rails. MST 463 is also fitted to receive a radar director and gun, but neither has been installed as yet.

Modernizations

mid-2010s, both: - OPS-18 radar; + OPS-39 radar

Naval service

No significant events.
