KOJIMA large patrol vessel (1993)

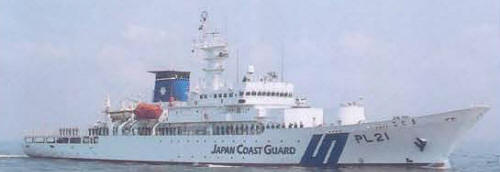

Kojima 2008

Ships


Name No Yard No Builder Laid down Launched Comp Fate
こじま [Kojima] PL21   Hitachi, Maizuru 7.11.1991 10.9.1992 11.3.1993 in service (2019)


Technical data


Displacement standard, t2950
Displacement normal, t

3136

Length, m

115.2

Breadth, m

14.0

Draught, m

3.53 mean 5.00 max

No of shafts

2

Machinery

2 Niigata 8MG32CLX diesels

Power, h. p.

8000

Max speed, kts

18

Fuel, t

diesel oil

Endurance, nm(kts)7000(15)
Armament

1 x 1 - 35/90 type 87, 1 x 3 - 20/76 JM-61-MB Sea Vulcan, 1 x 1 - 12.7/90, helicopter deck

Electronic equipment2x JMA 1596 radars
Complement44 + 40 passengers


Standard scale images


similar<i> Miura</i> 2010
similar Miura 2010


Graphics


<i>Kojima </i>2008
Kojima 2008


Project history

Authorized under FY 90 budget. Used as a coast guard officer cadet training ship at Kure Academy. Officially of the "3,000-ton" class. The after deck serves as a helicopter platform and ceremonial/exercise space; there is no hangar. FLUME-type water-tank stabilization is fitted.

Modernizations

None.

Naval service

No significant events.
