S1 medium submarines (1943, 1943 / 1943)

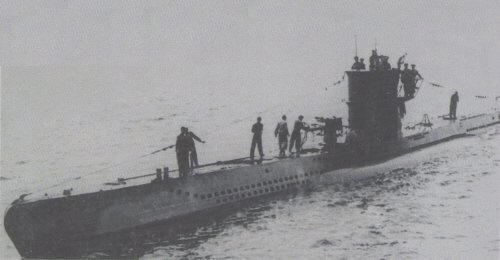

German U305
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| S1 (ex-U428) | Danziger Werft, Danzig, Germany | 8.1942 | 11.3.1943 | 6/1943 // 6.1943 | captured by Germany 8.9.1943 (U428) | ||
| S2 (ex-U746) | Schichau, Danzig, Germany | 7.1942 | 16.4.1943 | 7/1943 | captured by Germany 8.9.1943 (U746) | ||
| S3 (ex-U747) | Schichau, Danzig, Germany | 8.1942 | 13.5.1943 | 7/1943 | captured by Germany 8.9.1943 (U747) | ||
| S4 (ex-U429) | Danziger Werft, Danzig, Germany | 9.1942 | 30.3.1943 | 7/1943 // 7.1943 | captured by Germany 8.9.1943 (U429) | ||
| S5 (ex-U748) | Schichau, Danzig, Germany | 8.1942 | 13.5.1943 | 7/1943 | captured by Germany 8.9.1943 (U748) | ||
| S6 (ex-U430) | Danziger Werft, Danzig, Germany | 10.1942 | 22.4.1943 | 8/1943 // 8.1943 | captured by Germany 8.9.1943 (U430) | ||
| S7 (ex-U749) | Schichau, Danzig, Germany | 9.1942 | 10.6.1943 | 8/1943 | captured by Germany 8.9.1943 (U749) | ||
| S8 (ex-U1161) | Danziger Werft, Germany | 10.1942 | 8.5.1943 | 8.1943 | captured by Germany 8.9.1943 (U1161) | ||
| S9 (ex-U750) | Schichau, Danzig, Germany | 9.1942 | 10.6.1943 | 8/1943 | captured by Germany 8.9.1943 (U750) | ||
| S10 (ex-U1162) | Danziger Werft, Germany | 11.1942 | 29.5.1943 | 9.1943 // --- | captured by Germany 8.9.1943 (U1162), never really transferred | ||
| S11 (ex-U745) | Schichau, Danzig, Germany | 7.1942 | 16.4.1943 | 6/1943 // --- | captured by Germany 8.9.1943 (U745), never really transferred |
Technical data
| Displacement standard, t |
|
|---|---|
| Displacement normal, t | 769 / 1070 |
| Length, m | 67.1 |
| Breadth, m | 6.20 |
| Draught, m | 4.74 |
| No of shafts | 2 |
| Machinery | S1, 4, 6, 8, 10: 2 Germania diesels / 2 SSW electric motors S2, 3, 5, 7, 9, 11: 2 Germania diesels / 2 AEG electric motors |
| Power, h. p. | 2800 - 3200 / 750 |
| Max speed, kts | 17 - 17.7 / 7.6 |
| Fuel, t | diesel oil 114 |
| Endurance, nm(kts) | 8500(10) / 80(4) |
| Armament | S1 - 7, 9, 11: 1 x 1 - 37/69 FlaK M/42, 2 x 2 - 20/65 C/38, 5 - 533 TT (4 bow, 1 stern, 14) S8, 10: 1 x 1 - 37/69 FlaK M/42, 2 x 2 - 20/65 C/38, 5 - 533 TT (4 bow, 1 stern, 14 or 36 mines) |
| Electronic equipment | FuMO 30 radar, S-Gerät sonar, GHG hydrophone, FuMB 1 Metox ECM suite |
| Complement | 44 - 56 |
| Diving depth operational, m | 100 |
Graphics
German U305
Project history
In 1943 Germany transferred to Italy 9 submarines of VIIC and VIIC/41 series in exchange for Italian oceangoing submarines which were supposed to be converted to transports for routes to the Far East. In September, 1943 all 9 submarines (S1-9) were accepted by Italian crews in Germany and after armistice signing between Italy and Allies they were commissioned by Kriegsmarine. Two additional boats, S10 and S11, were never actually transferred.
Modernizations
None.
Naval service
All were re-commissioned by Germany 9.9.1943.
