CONDORE torpedo boat (1900)
Condore
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Condore | Ansaldo, Genova | 1898 | 17.9.1898 | 6/1900 | discarded 4.1920 |
Technical data
| Displacement normal, t | 138 |
|---|---|
| Displacement full, t | |
| Length, m | 47.0 pp 48.0 oa |
| Breadth, m | 5.55 |
| Draught, m | 1.36 |
| No of shafts | 2 |
| Machinery | 2 VTE, 3 Yarrow boilers |
| Power, h. p. | 2370 |
| Max speed, kts | 26 |
| Fuel, t | coal 42 |
| Endurance, nm(kts) | 2000(12) |
| Armament | 2 x 1 - 37/25 H lungo, 2 x 1 - 350 TT |
| Complement | 31 |
Standard scale images

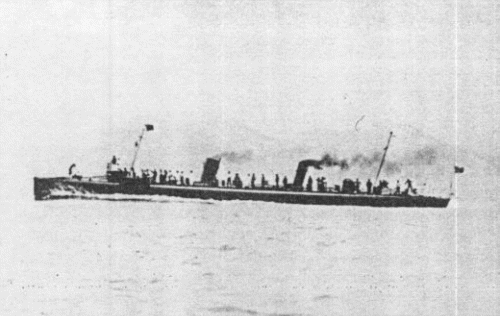

Condore 1900
Graphics
Condore
Project history
The first TB designed and built entirely in Italy and a successful boat if somewhat lightly armed. A first class TB.
Modernizations
1900s: boilers were replaced by 2 Normand oil-burning.
Naval service
No significant events.
