HABICHT I class gunboats (1880-1884)

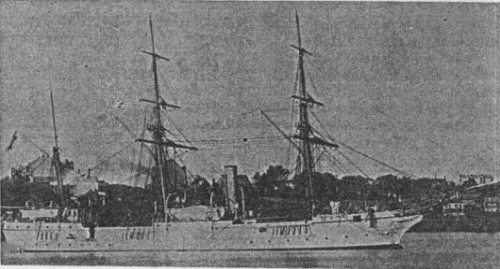

Möwe 1895

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Möwe   143 Schichau, Elbing 1878 8.10.1879 5.1880 hulk 12.1905
Habicht   144 Schichau, Elbing 1878 13.5.1879 3.1880 stricken 3.1906
Adler   7 KW Kiel 1882 3.11.1883 5.1884 wrecked 16.3.1889


Technical data


Displacement normal, t

Habicht, Möwe: 840

Adler: 880

Displacement full, t

Habicht, Möwe: 1005

Adler: 1040

Length, m

Habicht, Möwe: 59.2 oa 53.8 wl

Adler: 61.8 oa 58.1 wl

Breadth, m

Habicht, Möwe: 8.90

Adler: 8.80

Draught, m

Habicht, Möwe: 4.18

Adler: 4.02

No of shafts

1, hoisting screw

Machinery

Habicht, Möwe: 1 HC, 2 cylindrical boilers

Adler: 1 HC, 4 cylindrical boilers

Power, h. p.

Habicht, Möwe: 600

Adler: 700

Max speed, kts

11

Fuel, t

Habicht, Möwe: coal 100

Adler: coal 110

Endurance, nm(kts)

Habicht, Möwe: 2010(9)

Adler: 2000(9)

Armament

1 x 1 - 149/20 RK L/22 C/68, 4 x 1 - 120/21 RK L/23 C/69

Complement

127 - 133



Standard scale images


<i>Möwe </i>1899
Möwe 1899


Graphics


<i>Möwe </i>1895
Möwe 1895


Project history

Iron-hulled, barquentine-rigged colonial gunboats, considered very good under sail and as seaboats.

Modernizations

1882, all: - 1 x 1 - 149/20, 4 x 1 - 120/21; + 5 x 1 - 125/21 RK L/23 C/78, 5 x 5 - 37/27 RV L/30

1890, Möwe: - 3 x 1 - 125/21

Naval service

Möwe remained as a hulk at Tsingtau until sold in 1910. Adler was lost in Apia harbour during the Calliope typhoon 16.3.1889.
