ARTIGLIERE destroyer (1942 / 1951)


Ships


Name No Yard No Builder Laid down Launched Comm Fate
Artigliere (ex-Woodworth) D553   Bethlehem, San Francisco, USA 4/1941 29.11.1941 4/1942 // 11.6.1951 stricken 1.1971


Technical data


Displacement standard, t

1900

Displacement full, t

2600

Length, m

103.9 wl 106.2 oa

Breadth, m

11.0

DD634, 635: 11.3

Draught, m

4.92 full load

No of shafts

2

Machinery

2 sets Westinghouse geared steam turbines, 4 Babcock & Wilcox boilers

Power, h. p.

50000

Max speed, kts

35

Fuel, t

oil 302 - 453

Endurance, nm(kts)3630(20) - 3880(20)
Armament

4 x 1 - 127/38 Mk 30, 2 x 2 - 40/60 Mk 1, 7 x 1 - 20/70 Mk 10, 6 DCT, 2 DCR (62)

Electronic equipment

SC, SG, Mk 12.22 radars, QCJ sonar

Complement

208



Standard scale images

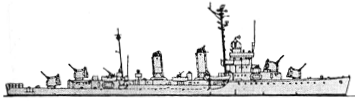

<i>Artigliere </i>1954
Artigliere 1954


Project history

Former USN Laffey class destroyer, transferred under MDAP.

Modernizations

None.
