BC2001 patrol boats (1980-1981)
BC2007 1990
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
BC2001-2007 |
CMN, Cherbourg, France: BC2001-2007 | 1980: BC2001-2006 1981: BC2007 |
none |
none |
in service (2019): BC2001-2007 |
Technical data
| Displacement standard, t | 59 |
|---|---|
| Displacement full, t | 70 |
| Length, m | 26.5 pp 28.5 oa |
| Breadth, m | 5.40 |
| Draught, m | 1.65 propellers |
| No of shafts | 2 |
| Machinery | 2 MTU 12V331 TC92 diesels |
| Power, h. p. | 2440 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement |
Graphics

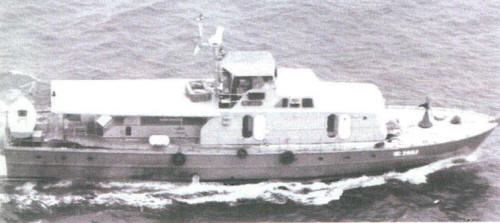

BC2007 1990
Project history
Patrol boats.
Modernizations
None.
Naval service
No significant events.
