INDONESIAN NAVY (INDONESIA)

ESCORTS

SAMADIKUN frigates (1959-1960/1973-1974)

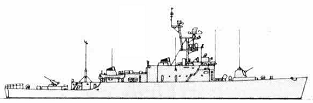

Mongisidi 1990

Name No Yard No Builder Laid down Launched Comp Fate
Samadikun (ex-John R. Perry) 341 841 Avondale, Westwego, USA 1/10/1957 29/7/1958 5/5/1959 // 20/2/1973 discarded 2006
Martadinata (ex-Charles Berry) 342 905 American SB, Lorain, USA 29/10/1958 17/3/1959 25/11/1959 // 31/1/1974 discarded 2006
Mongisidi (ex-Claud Jones) 343 840 Avondale, Westwego, USA 1/6/1957 27/5/1958 10/2/1959 // 16/12/1974 discarded 2005
Ngurah Rai (ex-McMorris) 344 906 American SB, Lorain, USA 5/11/1958 26/5/1959 4/3/1960 // 16/12/1974 discarded 2005



Displacement standard, t

1720

Displacement full, t

1970

Length, m

91.8 wl 95.1 oa

Breadth, m

11.8

Draught, m

3.70 hull 5.54 sonar

No of shafts

1

Machinery

4 Fairbanks-Morse 38ND81/8 diesels

Power, h. p.

9240

Max speed, kts

22

Fuel, t

diesel oil 296

Endurance, nm (kts) 7000(12)

Armament

2 x 1 - 76/50 Mk 34, 2 x 3 - 324 Mk 32 TT, 2 x 24 - 178 Hedgehog Mk 11 ASWRL, 1 DCR

Sensors

SPS-10, SPS-6E, SPG-52 radars, SQS-4 sonar, WLR-1 ECM suite

Complement

171

Ship project history: Former USN Claud Jones class frigates, considered by USN not too successful.

Modernizations: 1980-1981, Samadikun: - 1 x 1 - 76/50, SQS-4 sonar, WLR-1 ECM; + 1 x 2 - 37/63 V-11M, 1 x 2 - 25/82 2M-3M, 2 x 1 - 12.7/79, 2 DCT, Decca 1226 radar, EDO786 sonar

1980-1981, Martadinata: - 1 x 1 - 76/50, SQS-4 sonar; + 1 x 2 - 37/63 V-11M, 1 x 2 - 25/82 2M-3M, 2 x 1 - 12.7/79, 2 DCT, Decca 1226 radar, SQS-45(v) sonar

1981-1982, Mongisidi: - 1 DCR, SQS-4 sonar; + 2 x 1 - 12.7/79, Decca 1226 radar, SQS-39(v) sonar

1981-1982, Ngurah Rai: - 1 DCR, SQS-4 sonar; + 2 x 1 - 12.7/79, Decca 1226 radar, SQS-42(v) sonar

late 1990s, all: - 2 x 24 Hedgehog ASWRL

early 2000s, Samadikun, Martadinata: - 1 x 2 - 25/82

Naval service: No significant events.

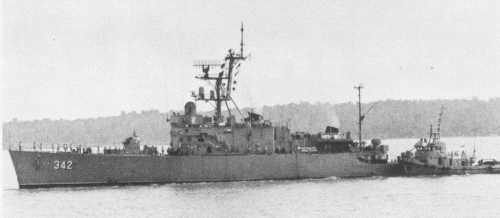

Martadinata 1980

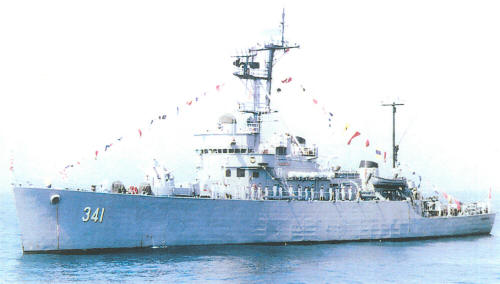

Samadikun 2001

Ivan Gogin, 2017
