ENGGANG patrol boats (2003-2004)
642 2007
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Enggang | 4016 | Jurong SML, Singapore | 3.3.2003 | 16.9.2003 | 2.12.2003 | in service (2019) | |
| Kolibri | Jurong SML, Singapore | 3.3.2003 | 20.8.2003 | 12.11.2003 | in service (2019) | ||
| Murai | Jurong SML, Singapore | 3.3.2003 | 8.10.2003 | 26.12.2003 | in service (2019) | ||
| Balam | Jurong SML, Singapore | 3.3.2003 | 30.9.2003 | 19.1.2004 | in service (2019) | ||
| Tekukur | 643, later- 5010 | Jurong SML, Singapore | 2003 | 2003 | 2003-04 | in service (2019) | |
| vi | Jurong SML, Singapore | 2003 | 2003 | 2003-04 | in service (2019) | ||
| vii | Jurong SML, Singapore | 2003 | 2003 | 2003-04 | in service (2019) | ||
| viii | Jurong SML, Singapore | 2003 | 2003 | 2003-04 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 165 |
| Length, m | 36.4 |
| Breadth, m | 7.10 |
| Draught, m | 2.20 |
| No of shafts | 2 |
| Machinery | 2 MTU 12V4000 M90 diesels |
| Power, h. p. | 5550 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1200(15) |
| Armament | 3 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement | 24 |
Graphics

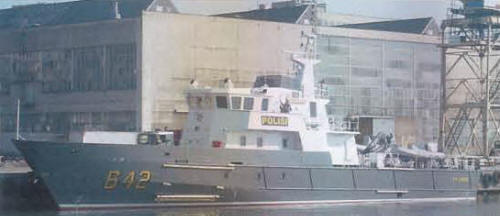

642 2007
Project history
Patrol craft. Hull numbers include 634, 648 and others.
Modernizations
None.
Naval service
No significant events.
