BOA patrol boats (2004-2005)
Warakas 2008
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
807 Boa 808 Welang 809 Sulh Pari 810 Katon 815 Sanca 816 Warakas 817 Panana 818 Kalakae 819 Tedong Naga |
Fasharkan Mentigi Naval DY: 807-810 Fasharkan Manokwari Naval DY: 815 Pondok Dayung Naval Repair and Maintenance, Jakarta: 816, 819 Fasharkan Makassar Naval DY: 817, 818 |
8.2004: 807, 808 1.2005: 809, 810, 815-819 |
none |
none |
in service (2019): 807-810, 815-819 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 90 |
| Length, m | 35.0 |
| Breadth, m | 7.00 |
| Draught, m | 1.40 |
| No of shafts | 3 |
| Machinery | 3 MAN D2842 LE410 diesels |
| Power, h. p. | 3300 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 20/85 S.20, 2 x 1 - 12.7/79 |
| Electronic equipment | Furuno radar |
| Complement | 20 |
Graphics

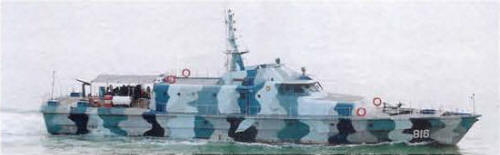

Warakas 2008
Project history
Class KAL-35 patrol boats. Carry a single RIB.
Modernizations
None.
Naval service
No significant events.
