DOUDART DE LA GRÉE river gunboat (1909)

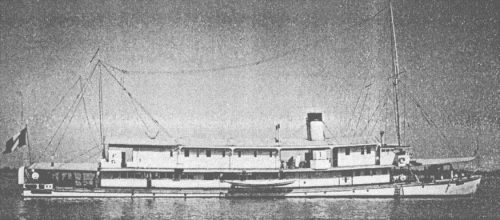

Doudart de la Grée 1937

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Doudart de la Grée     A C de Bretagne, Nantes 3.1908 5.1.1909 2.1909 laid up 1939, BU 1941


Technical data


Displacement normal, t

183

Displacement full, t
Length, m52.3 pp 54.4 oa
Breadth, m6.70
Draught, m1.00
No of shafts

2

Machinery

2 VTE, 2 Fouché boilers

Power, h. p.

900

Max speed, kts

14

Fuel, t

coal 45

Endurance, nm(kts)
Armament

6 x 1 - 37/20 M1885

Complement66


Standard scale images


<i>Doudart de la Grée</i> 1909
Doudart de la Grée 1909


Graphics


<i>Doudart de la Grée</i> 1937
Doudart de la Grée 1937


Project history

Designed for service on Yangtze, ordered in 1908.

Modernizations

1917: - 4 x 1 - 37/20; + 1 x 1 - 75/35 M1897, 4 x 1 - 8.80.

Naval service

Doudart de la Grée was laid up at Shanghai in 1939 and scrapped in 1941.
