DUBOURDIEU 2nd class avisos (sloops) (1919 - 1920)
Dubordieu
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Decres | Arsenal de Lorient | 1918 | --- | --- | cancelled | ||
| Du Chaffault | Arsenal de Lorient | 1917 | 9.1918 | 1918 | stricken 1938 | ||
| Du Couëdic | Arsenal de Lorient | 1918 | 7.1919 | 1920 | stricken 1939 | ||
| Dubourdieu | Arsenal de Lorient | 1917 | 4.1918 | 1918 | sunk 8.11.1942 | ||
| Dumont D`Urville, 10.1929- Enseigne Henry | Arsenal de Lorient | 1917 | 6.11.1918 | 1919 | stricken 1933 | ||
| Duperré | Arsenal de Lorient | 1918 | 12.1918 | 1920 | stricken 1933 |
Technical data
| Displacement normal, t | 453 |
|---|---|
| Displacement full, t | |
| Length, m | 64.9 |
| Breadth, m | 8.20 |
| Draught, m | 3.10 |
| No of shafts | 2 |
| Machinery | 2 sets Breguet geared steam turbines, 2 Du Temple boilers |
| Power, h. p. | 2000 |
| Max speed, kts | 16.5 |
| Fuel, t | oil 140 |
| Endurance, nm(kts) | 2000(15) |
| Armament | 1 x 1 - 139/45 M1893, 1 x 1 - 100/45 M1917, 2 DCT |
| Complement | 74 |
Standard scale images

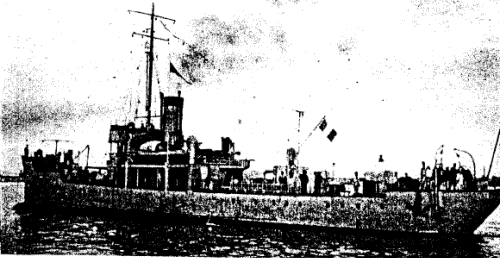

Dubourdieu 1919
Dubourdieu 1940
Graphics
Dubordieu
Project history
Smaller variant of Amiens class.
Modernizations
None.
Naval service
Dubourdieu was paid off at Casablanca 28.10.1940 and sunk 8.11.1942 at Allied landing in the North Africa. Enseigne Henry was scuttled at Lorient 18.6.1940, salvaged by Germans and sold for scrap 25.6.1941.
