FIGHTING SHIPS OF THE WORLD
ETHIOPIA / ERITREA
AMPHIBIOUS SHIPS AND CRAFT
P63 small landing ships (1967/1993)





LC302 2014

Ships


Name No Yard No Builder Laid down Launched Comp Fate
(ex-אשקלון [Ashkelon]) P63, 2006- LC302   Israel SYds, Haifa, Israel     1967 // 1993 interned by Djibouti 1993, seized by Djibouti 16.9.1996, to Eritrea 11.1996, in service (2019)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate (ex-אשקלון [Ashkelon]) P63, 2006- LC302   Israel SYds, Haifa, Israel     1967 // 1993 interned by Djibouti 1993, seized by Djibouti 16.9.1996, to Eritrea 11.1996, in service (2019)

Technical data


Displacement standard, t

400
Displacement full, t730
Length, m

62.7
Breadth, m

10.0
Draught, m

1.80
No of shafts3
Machinery

3 MWM diesels
Power, h. p.

1900
Max speed, kts

10.5
Fuel, t

diesel oil 37
Endurance, nm(kts)
Armament

2 x 2 - 23/87 ZSU-23-2, 2 x 1 - 12.7/79
Military load

tanks, troops
Electronic equipmentradar
Complement20


Graphics

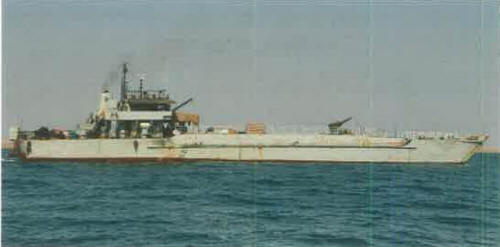

<i>LC302 </i>2014
LC302 2014


Project history

Former Israeli Ashdod class LCU acquired by Ethiopia in 1993 and sold to Eritrea later.

Modernizations

None.

Naval service

Ship was seized by Djibouti and sold to Eritrea.
