NAVYPEDIA


1966

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
No 781, later- 391, later- 601 No 783, later- 393, later- 602 No 785, later- 395, later- 603 No 787, later- 397, later- 605 No 789, later- 399, later- 606 No 791, later- 607 No 793, later- 608 No 795, later- 609	5 Yd, Leningrad: 781, 783, 785, 787, 789, 791, 793, 795	1959-1965 // 1962-1967: 781, 783, 785, 787, 789, 791, 793, 795	1 boat (16.5.1970), 1 boat (10/1973), 1 boat (10/1973)	none	1980: 1 boat 1985: 4 boats

Technical data

Displacement standard, t	70
Displacement full, t	81
Length, m	25.5
Breadth, m	6.20
Draught, m	1.40
No of shafts	4
Machinery	4 M50F-4 diesels
Power, h. p.	4800
Max speed, kts	38
Fuel, t	diesel oil
Endurance, nm(kts)	885(11.8)
Armament	2 x 1 P-15 SSM (2 P-15), 1 x 2 - 25/80 2M-3M
Electronic equipment	Rangout radar
Complement	17

Standard scale images

Graphics

Project history

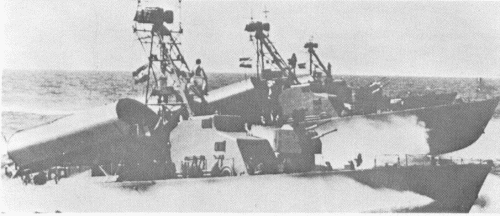

Soviet project 183R fast attack craft.

Modernizations

1970s, all survived: diesels were replaced by 4 CRM-12 D/S-2 diesels (5500hp, 40kts).

Naval service

One boat was sunk 16.5.1970 by Israeli aircraft, two were sunk by Israeli forces in October 1973.
