4! No 310 fast attack craft (torpedo) (1965-1967/1967-1968)





1974

Ships


Name No Yard No Builder Laid down Launched Comp Fate
  310, 1978- 751   Yaroslavl SYd, USSR     1965 // 2.1967 stricken 2001
  321, 1978- 753   Yaroslavl SYd, USSR     1965 // 11.1967 in service (2019)
  332, 1978- 755   Yaroslavl SYd, USSR     1966 // 11.1967 in service (2019)
  343, 1978- 757   Yaroslavl SYd, USSR     1967 // 11.1967 in service (2019)
  354, 1978- 759   Yaroslavl SYd, USSR     1967 // 1.1968 in service (2019)
  365, 1978- 761   Yaroslavl SYd, USSR     1967 // 2.1968 in service (2019)


Technical data


Displacement standard, t

129

Displacement full, t

152

Length, m

34.1

Breadth, m

6.77

Draught, m

1.72

No of shafts

3

Machinery

3 M-503A/G diesels

Power, h. p.

12000

Max speed, kts

46

Fuel, t

diesel oil

Endurance, nm(kts)

1700(13)

Armament

2 x 2 - 30/71 AK-230, 4 - 533 TT, 2 DC, 6 mines

Electronic equipment

MR-102 Baklan, MR-104 Rys' radars

Complement

21



Standard scale images


<i>310 </i>1967
310 1967
<i>343</i> 1980
343 1980


Graphics

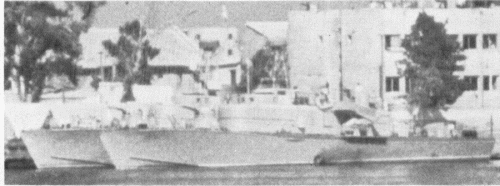

1974
1974

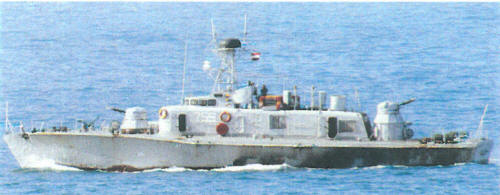

<i>No 759 </i>2003
No 759 2003


Project history

Former Soviet Project 206 fast attack craft.

Modernizations

early 1970s, 4 boats (No 343 and three more): - 4 - 533 TT; + 1 x 1 Strela-2M SAM, 2 x 20 - 122 Grad BM-21 RL

early 1970s, 1 boat: + 1 x 1 Strela-2M SAM

1990s, 4 boats: - 2 x 20 - 122 RL

1990s, 1 boat: - 4 - 533 TT

2000s, all: + DR-875 ECM suite

Naval service

No significant events.
