NO401 fast attack craft (missile) (1984)

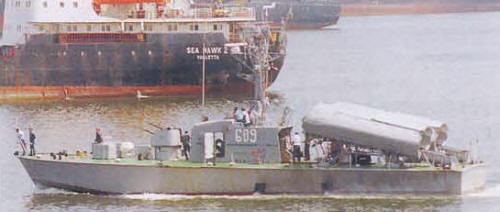

No 609 2000
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
401, 1988- 609 402, 1988- 611 403, 1988- 613 404, 1988- 614 405, 1988- 615 406, 1988- 616 |
China: 401-406 |
1984: 401-406 |
none |
none |
2012: 617, 619 in service (2019): 609, 611, 613, 615 |
Technical data
| Displacement standard, t | 68 |
|---|---|
| Displacement full, t | 80 |
| Length, m | 27.0 |
| Breadth, m | 6.50 |
| Draught, m | 1.80 |
| No of shafts | 4 |
| Machinery | 4 L-12V-180 diesels |
| Power, h. p. | 4800 |
| Max speed, kts | 36 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 500(25) |
| Armament | 2 x 1 Hai Ying 2 SSM (2 HY-2), 1 x 2 - 25/80 type 61 |
| Electronic equipment | type 352C radar |
| Complement | 17 |
Standard scale images
No 609 2000
Graphics
No 609 2000
Project history
Chinese Type 024 boats.
Modernizations
1994, all: - 1 x 2 - 25/80; + 1 x 2 - 23/81 type 61, Decca radar, Triton ECM suite
Naval service
No significant events.
