CZECHOSLOVAKIA
RIVER BOATS
MD-1 river motor gunboats (1920)





OMd2 1926

Ships


Names Builders Commissioned Losses Transfers Discarding

Md-1, 1924- OMd1

Md-2, 1924- OMd2

Ústecká s. r. o.: Md-1, 2

1920: Md-1, 2

none

none

1934: OMd1, 2


Technical data


Displacement standard, t
Displacement full, t35
Length, m

21.0

Breadth, m

4.00

Draught, m

1.60 max

No of shafts

1

Machinery

1 diesel

Power, h. p.220
Max speed, kts10.8
Fuel, t

diesel oil

Endurance, nm(kts)
Armament

2 x 1 - 75/12 Škoda vz.15, 2 x 1 - 7.9/67, 10 mines

Complement43


Standard scale images


<i>Md-1</i> 1920
Md-1 1920


Graphics

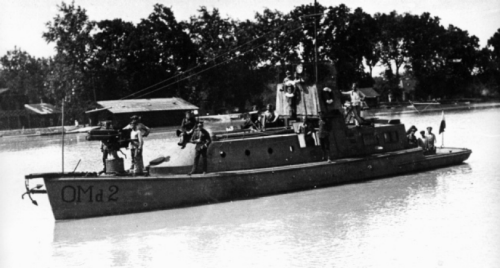

<i>OMd2</i> 1926
OMd2 1926


Project history

Small riverine patrol boats, originally ordered by Austria-Hungary as torpedo retrievers.

Modernizations

1923, both: diesel was replaced by ones manufactured by Škoda (225hp).

Naval service

No significant events.
