No421 riverine patrol boats (1980)
1991
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
|---|---|---|---|---|---|---|---|
| 421 | Swiftships, Morgan City, USA | 1980 | in service (2019) | ||||
| 422 | Swiftships, Morgan City, USA | 1980 | in service (2019) | ||||
| 423 | Swiftships, Morgan City, USA | 1980 | in service (2019) |
Technical data
| Displacement standard, t | 103 |
|---|---|
| Displacement full, t | 111 |
| Length, m | 31.5 |
| Breadth, m | 7.20 |
| Draught, m | 2.10 |
| No of shafts | 2 |
| Machinery | 2 MTU 12V331 TC81 diesels |
| Power, h. p. | 1920 |
| Max speed, kts | 24 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1200(18) |
| Armament | 2 x 1 - 40/60 Mk 3, 2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90 |
| Electronic equipment | Raytheon 1500 radar |
| Complement | 25 |

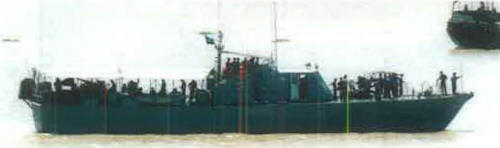

Graphics
1991
Project history
Swiftship construction boats completed between March and September 1979 and acquired next year through Vosper, Singapore.
Modernizations
None.
Naval service
No significant events.
