DIONYSOS patrol boats (1979/1992)
Diohysos 2006
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
PL11 Διόνυσος [Dionysos] (ex-GS12) PL12 Κουριών [Kourion] (ex-GS27) PL13 Ιλαρίων [Ilarion] (ex-GS25) PL14 Καρπασία [Karpasia] (ex-GS10) PL15 Ακάμας [Akamis] (ex-GS28) |
Yachtwerft, Berlin, East Germany: PL11-15 |
1979 // 1992: PL11-15 |
none |
none |
in service (2019): PL11-15 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 14 |
| Length, m | 12.6 |
| Breadth, m | 4.00 |
| Draught, m | 1.10 |
| No of shafts | 2 |
| Machinery | 2 Volvo-Penta TAMD diesels |
| Power, h. p. | 540 |
| Max speed, kts | 16 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 300(15) |
| Armament | 2 x 1 - 7.6/90 |
| Electronic equipment | Decca radar |
| Complement | 5 |
Graphics

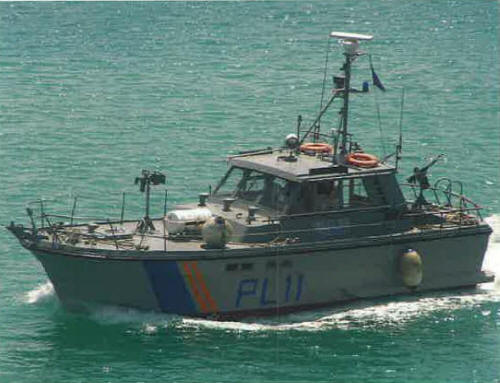

Diohysos 2006
Project history
Maritime Police. Former small harbour patrol launches of GDR Border Guard.
Modernizations
None.
Naval service
No significant events.
