CARABOBO patrol gunboats (1925)





Pichincha 1934

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Carabobo     C A de St. Nazaire-Penhoët, Rouen, France   8.8.1925 1925 stricken 1961
Boyacá, 1933/37- Junín     C A de St. Nazaire-Penhoët, Rouen, France   8.7.1925 1925 stricken 1961
Pichincha     C A de St. Nazaire-Penhoët, Rouen, France   5.9.1925 1925 stricken 1961


Technical data


Displacement standard, t

120
Displacement full, t
Length, m

33.0
Breadth, m

6.00
Draught, m

2.50
No of shafts

1
Machinery

1 VTE, 1 Thornycroft boiler
Power, h. p.

300
Max speed, kts

13
Fuel, t

oil 50
Endurance, nm(kts)
Armament

1 x 1 - 75/35 M1915-18, 1 x 1 - 37/50 M1925, 2 x 1 - 8.80
Complement

37


Graphics

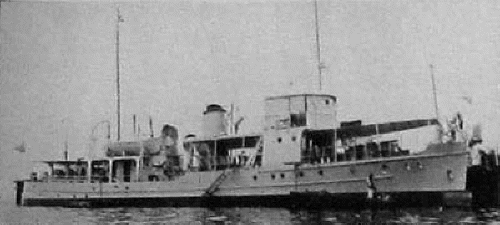

<i>Junín </i>1938
Junín 1938

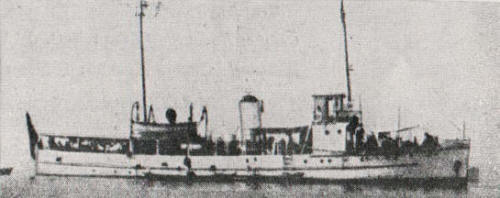

<i>Pichincha </i>1934
Pichincha 1934


Project history

Patrol coast defence ships.

Modernizations

1942-1945, all: - 1 x 1 - 37/50; + 1 x 1 - 20/70 Mk 4

Naval service

Pichincha served on Amazon and Putumayo.
