No 650 patrol boats (1978-1979)

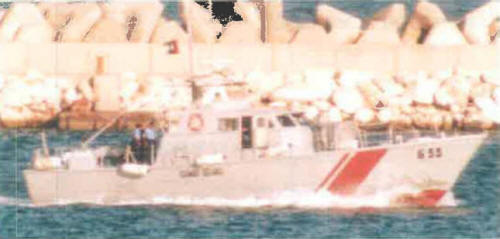

GC113 2001
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
650 - 665, 2010- GC108 - 123 |
Camcraft, New Orleans, USA: 650-665 |
1978-1979: 650-665 |
none |
none |
in service (2020): GC108-123 |
Technical data
| Displacement standard, t |
|
|---|---|
| Displacement full, t | 50 |
| Length, m | 19.2 |
| Breadth, m | 5.50 |
| Draught, m | 1.50 |
| No of shafts | 2 |
| Machinery | 650, 651: 2 General Motors 12V71TI diesels 652-665: 2 MTU 6V396 TB93 diesels |
| Power, h. p. | 650, 651: 1400 652-665: 1630 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 20/90 GAM-B01 |
| Electronic equipment | Decca radar |
| Complement | 8 |
Graphics
GC113 2001
Project history
Coast Guard. Camcraft P-63A design.
Modernizations
None.
Naval service
No significant events.
