KIANG SHIH river gunboats (1939-1940/1945)
Kiang Shih 1947
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 江西 [Kiang Shih] (ex-伏見 [Fushimi]), 1949- 中原 [Chiang Feng] | Fujinagata, Osaka, Japan | 7/1938 | 26.3.1939 | 7.1939 // 8.1945 | deleted 1960s | ||
| 南昌 [Nan Chang] (ex-隅田 [Sumida]) | Fujinagata, Osaka, Japan | 4.1939 | 30.10.1939 | 5.1940 // 8.1945 | deleted 1960s |
Technical data
| Displacement standard, t | 304 |
|---|---|
| Displacement full, t | 368 |
| Length, m | 48.5 pp 50.0 wl 50.3 oa |
| Breadth, m | 9.78 |
| Draught, m | 1.26 |
| No of shafts | 2 |
| Machinery | 2 sets geared steam turbines, 2 Kampon boilers |
| Power, h. p. | 2200 |
| Max speed, kts | 17 |
| Fuel, t | oil |
| Endurance, nm(kts) | 1500(14) |
| Armament | 1 x 1 - 76/40 11-shiki, 1 x 1 - 25/60 96-shiki |
| Complement | 64 |
Standard scale images

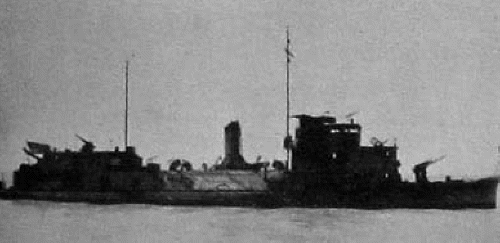

Kiang Shih 1946
Graphics
Kiang Shih 1947
Project history
River gunboats of Fushimi class, received in 1945 by reparations.
Modernizations
None.
Naval service
No significant events.
