Lingyanshan 2001

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate

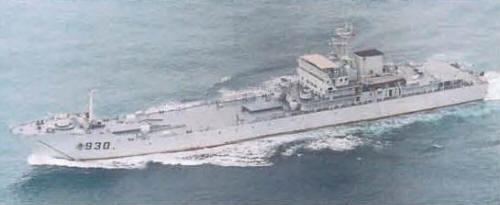

灵岩山 [Lingyanshan]	930		Zhonghua SY, Shanghai			1993	in service (2019)
洞庭山 [Dongtingshan]	931		Zhonghua SY, Shanghai		5.1993	6.1994	in service (2019)
贺兰山 [Helanshan]	932		Zhonghua SY, Shanghai			1994	in service (2019)
六盘山 [Liupanshan]	933		Zhonghua SY, Shanghai			1995	in service (2019)

100 - 1000 t displacement/ BRT tonnage vessels

Name No Yard No Builder Laid down Launched Comp Fate 灵岩山 [Lingyanshan] 930   Zhonghua SY, Shanghai     1993 in service (2019) 洞庭山 [Dongtingshan] 931   Zhonghua SY, Shanghai   5.1993 6.1994 in service (2019) 贺兰山 [Helanshan] 932   Zhonghua SY, Shanghai     1994 in service (2019) 六盘山 [Liupanshan] 933   Zhonghua SY, Shanghai     1995 in service (2019)

Technical data

Displacement standard, t	3110
Displacement normal, t	4170
Length, m	119.5
Breadth, m	15.6
Draught, m	2.90
No of shafts	2
Machinery	2 SEMT-Pielstick 12PA6V-280MPC diesels
Power, h. p.	9600
Max speed, kts	18
Fuel, t	diesel oil
Endurance, nm(kts)	3000(14)
Armament	1 x 2 - 57/62 type 66, 3 x 2 - 37/63 type 76
Military load	2 LCVP, 10 main battle tanks or 500 t of cargo, 200 troops
Electronic equipment	2x type 756 radars
Complement	109

Standard scale images

Graphics

Project history

Deeply modified type 072 LSTs with small flight deck for helicopter. Bow and stern ramps.

Modernizations

None.

Naval service

No significant events.
