JIMO (project 037IS) large patrol craft (1993-1997)

Changli 2010

Name No Builder Laid down Launched Comp Fate
海阳 <Haiyang> 611 Qiuxin SY, Shanghai     1996-97 stricken 2015
章丘 <Zhangqiu> 612 Qiuxin SY, Shanghai     1996-97 in service (2017)
任丘 <Renqiu> 613 Qiuxin SY, Shanghai     1996-97 in service (2017)
昌黎 <Changli> 614 Qiuxin SY, Shanghai     1996-97 in service (2017)
永济 <Yongji> 631 Qiuxin SY, Shanghai     1996-97 stricken 2016
长海 <Changhai> 632 Qiuxin SY, Shanghai     1996-97 stricken 2016
绥中 <Suizhong> 633 Qiuxin SY, Shanghai     1996-97 in service (2017)
宝丰 <Baofeng> 634 Qiuxin SY, Shanghai     1996-97 in service (2017)
伊川 <Yichuan> 635 Qiuxin SY, Shanghai     1996-97 stricken 2016
即墨 <Jimo> 710 Qiuxin SY, Shanghai     1993-95 in service (2017)
胶南 <Jiaonan> 711 Qiuxin SY, Shanghai     1993-95 in service (2017)
锦江 <Jinjiang> 712 Qiuxin SY, Shanghai     1993-95 in service (2017)
龙海 <Longhai> 713 Qiuxin SY, Shanghai     1993-95 in service (2017)
  714 Qiuxin SY, Shanghai     1993-95 stricken 2010/13
  715 Qiuxin SY, Shanghai     1993-95 stricken 2010/13
  716 Qiuxin SY, Shanghai     1993-95 stricken 2010/13
  717 Qiuxin SY, Shanghai     1993-95 stricken 2010/13
黄岩 <Huangyan> 743 Qiuxin SY, Shanghai     1993-95 in service (2017)
云和 <Yunhe> 744 Qiuxin SY, Shanghai     1993-95 in service (2017)
富阳 <Fuyang> 761 Qiuxin SY, Shanghai     1993-95 in service (2017)
萧山 <Xiaoshan> 762 Qiuxin SY, Shanghai     1993-95 in service (2017)
上虞 <Shangyu> 763 Qiuxin SY, Shanghai     1993-95 in service (2017)
  764 Qiuxin SY, Shanghai     1993-95 stricken 2010/13
万宁 <Wanning> 786 Qiuxin SY, Shanghai     1993-95 in service (2017)
乐东 <Ledong> 787 Qiuxin SY, Shanghai     1993-95 in service (2017)
定安 <Dingan> 788 Qiuxin SY, Shanghai     1993-95 in service (2017)
临高 <Lingao> 789 Qiuxin SY, Shanghai     1993-95 in service (2017)
  790 Qiuxin SY, Shanghai     1996-97 stricken 2010/13
  791 Qiuxin SY, Shanghai     1996-97 stricken 2010/13
  792 Qiuxin SY, Shanghai     1996-97 stricken 2010/13
  793 Qiuxin SY, Shanghai     1996-97 stricken 2010/13
  794 Qiuxin SY, Shanghai     1996-97 stricken 2010/13
  795 Qiuxin SY, Shanghai     1996-97 stricken 2010/13
  796 Qiuxin SY, Shanghai     1996-97 stricken 2010/13
  797 Qiuxin SY, Shanghai     1996-97 stricken 2010/13





Displacement standard, t



Displacement full, t

478

Length, m

62.8

Breadth, m

7.20

Draught, m

2.40

No of shafts

4

Machinery

4 PR 230ZC diesels

Power, h. p.

8000

Max speed, kts

28

Fuel, t

diesel oil

Endurance, nm(kts)

1300(15)

Armament

2 x 2 - 37/63 type 76A, 2 x 2 - 14.5/93, 2 x 6 type 87 ASWRL

Sensors

type 723 radar, Tamir-11 sonar

Complement

71

Ship project history: Replacement for Type 037IS with new main guns and ASW rocket launchers.

Modernizations: None.

Naval service: No significant events.

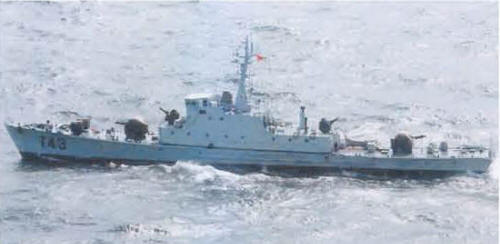

Huangyan 2008
