ZIGONG frigates (project 053H1G, 1993-1995)

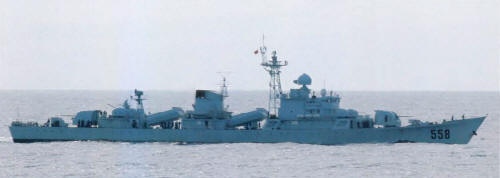

Zigong 1995



Beihai 2010

Name No Builder Laid down Launched Comp Fate
自貢 <Zigong>, 2010- 北海 <Beihai> 558 Huangpu SY, Guangzhou   20/1/1993 18/12/1993 in service (2017)
佛山 <Foshan> 559 Huangpu SY, Guangzhou   29/12/1993 21/5/1994 in service (2017)
东莞 <Dongguan> 560 Huangpu SY, Guangzhou   3/1993 10/1993 in service (2017)
汕头 <Shantou> 561 Huangpu SY, Guangzhou   1994 1994 in service (2017)
江门 <Jiangmen> 562 Huangpu SY, Guangzhou   1995 1995 in service (2017)
肇庆 <Zhaoqing> 563 Huangpu SY, Guangzhou   1995 2/1996 in service (2017)



Displacement standard, t

1425

Displacement full, t

1702

Length, m

103.2

Breadth, m

10.2

Draught, m

3.05 hull

No of shafts

2

Machinery

2 SEMT-Pielstick 12PA6 280BTC diesels

Power, h. p.

16000

Max speed, kts

25.5

Fuel, t

diesel oil

Endurance, nm(kts)

3000(18)

Armament

2 x 2 Hai Ying-2A SSM (4 C-201A), 2 x 2 - 100/56 type 79A, 4 x 2 - 37/63 type 76A, 2 x 6 type 87 ASWRL, 4 DCT, 2 DCR, 24 mines

Sensors

Decca RM1290A/D, type 360, type 517H, type 343, type 347G, type 352 radars, SJD-5, SJC-1B sonars, 2x type 211, type 318, type 521 ECM suites, 2x type 946 decoy RL, ZKJ-3A CCS

Complement

175

Ship project history: A simplified version of the Type 053H1 put back into production after the first four Type 053H2 frigates, probably as an inexpensive way to maintain order of battle. They are visually distinguishable by the “mack”-type stack, which has the long-range air-search radar antenna mounted on its forward edge.

Modernizations: 2007, Foshan; 2008, Dongguan; 2009, Shantou; 2010, Beihai, Jiangmen, Zhaoqing: - 2 x 2 Hai Ying-2A SSM, 2 x 2 - 100/56 type 79A, type 517H radar; + 2 x 4 Ying Ji-82 SSM (8 YJ-82 (C-802)), 2 x 2 - 100/56 type 99, type 363 radar

Naval service: Dongguan was damaged by running aground in July 2012.

Zigong 2008
