SHUN SHENG patrol boat (1928)

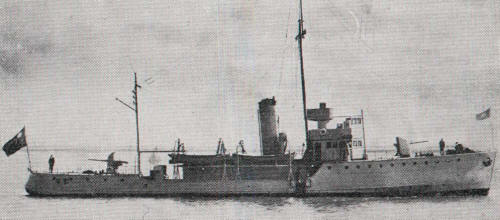

Shun Sheng 1930
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 順聖 [Shun Sheng] | Kiangnan DYd, Shanghai | 1928 | 1928 | scuttled 11.11.1938 |
Technical data
| Displacement standard, t | 280 |
|---|---|
| Displacement full, t | 350 |
| Length, m | 44.5 |
| Breadth, m | 7.47 |
| Draught, m | 1.83 |
| No of shafts | 1 |
| Machinery | 1 VTE, 1 boiler |
| Power, h. p. | 500 |
| Max speed, kts | 10.7 |
| Fuel, t | |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 76/40 3-shiki, 2 x 1 - 37/27 Maxim, 4 x 1 - 7.7/87 |
| Complement | 65 |
Standard scale images
Shun Sheng 1930
Graphics
Shun Sheng 1930
Project history
Successful class of small ship, capable to serve in coastal areas and on the rivers. One of 76mm of guns was antiaircraft.
Modernizations
None.
Naval service
11.11.1938 Shun Sheng was scuttled as a hulk on lake Dongting Hu at Yueyang.
