GUANGZHOU destroyers (2004)

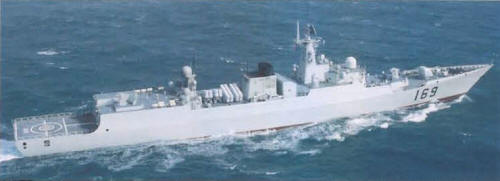

Wuhan 2007
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 广州 [Guangzhou] | 168 | Jiangnan, Shanghai | 2000 | 22.5.2002 | 20.5.2004 | in service (2019) | |
| 武汉 [Wuhan] | 169 | Jiangnan, Shanghai | 2001 | 9.9.2002 | 18.7.2004 | in service (2019) |
Technical data
| Displacement standard, t | 5800 |
|---|---|
| Displacement full, t | 7000 |
| Length, m | 155.0 |
| Breadth, m | 17.0 |
| Draught, m | 6.00 |
| No of shafts | 2 |
| Machinery | CODOG: 2 Zoria-Mashproekt DN-80 gas turbines / 2 Shaanxi 12V1163 TB83 diesels |
| Power, h. p. | 36300 / 9800 |
| Max speed, kts | 29 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 4500(15) |
| Armament | 4 x 4 Ying Ji-83 SSM (16 YJ-83 (C-803)), 2 x 1 HQ-16 SAM (48 HQ-16), 1 x 1 - 100/55 PJ-87, 2 x 7 - 30/77 type 730, 2 x 3 - 324 TT, 2 x 12 type 75 ASWRL, 1 helicopter (Ka-28) |
| Electronic equipment | type 382, type 366, type 364, 4x MR90, type 344, 2x type 347G, 2x type 756 radars, MGK-335EMS, H/SJG-206 sonars, 2x OFC-3 E/O directors, type 984/985, SR-210 ECM suites, 4 type 726-4 decoy launchers, ZKJ-5 CCS |
| Complement | 280 |
Standard scale images

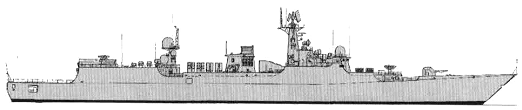

Guangzhou 2010
Graphics
Wuhan 2007
Project history
Type 052B. Much improved version of the type 051B with some shaping of the superstructure to reduce radar signature, bulwarks at the bow and a single stack. Have the same SAM and main search radars as the Russian Sovremennyy class. Two pairs of active stabilizers.
Modernizations
None.
Naval service
No significant events.
