HUANGSHI frigates (project 053H2, 1986-1990)





Zhoushan 2002

Ships


Name No Yard No Builder Laid down Launched Comp Fate
黄石 [Huangshi] 535   Hudong SY, Shanghai   28.12.1985 15.12.1986 stricken 4.2013, to Bangladesh (আবু বকর [Abu Bakr])
芜湖 [Wuhu] 536   Hudong SY, Shanghai   9.8.1986 29.12.1987 stricken 4.2013, to Bangladesh (আলী হাইডের [Ali Haider])
舟山 [Zhoushan], 7.2006- 沧州 [Cangzhou] 537   Hudong SY, Shanghai   30.10.1989 17.11.1990 in service (2019)


Technical data


Displacement standard, t

1655
Displacement full, t

1960
Length, m

103.2
Breadth, m

10.8
Draught, m

3.10 hull
No of shafts

2
Machinery

2 SEMT-Pielstick 12PA6 280BTC diesels
Power, h. p.

16000
Max speed, kts

28
Fuel, t

diesel oil
Endurance, nm(kts)

3000(18)
Armament

535, 536: 2 x 4 Ying Ji-1 SSM (8 C-801), 2 x 2 - 100/56 type 79A, 4 x 2 - 37/63 type 76, 2 x 5 type 81 ASWRL, 2 DCT

537: 2 x 4 Ying Ji-2 SSM (8 C-802), 2 x 2 - 100/56 type 79A, 4 x 2 - 37/63 type 76, 2 x 5 type 81 ASWRL, 2 DCT
Electronic equipment

535, 536: type 756, type 354, type 352C, type 341, type 343 radars, SJD-5, SJC-1B sonars, type 923, type 981, RWD-8 ECM suites, 2x type 945 decoy RL, ZKJ-3A CCS

537: type 756, type 354, type 352C, type 341, type 343, type 517A radars, SJD-5, SJC-1B sonars, type 923, type 981, RWD-8 ECM suites, 2x type 945 decoy RL, ZKJ-3A CCS
Complement

168


Graphics

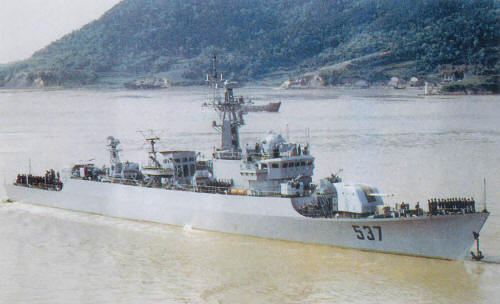

<i>Zhoushan </i>2002
Zhoushan 2002

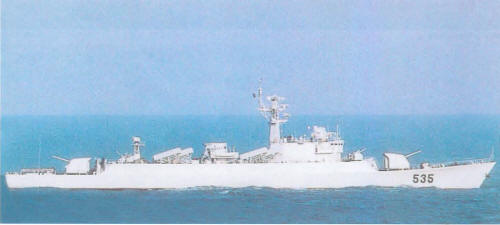

<i>Huangshi </i>2001
Huangshi 2001


Project history

Improved version of Type 053H1, with a full shelter deck amidships supporting four twin YJ-1 SSM launchers They carry the same twin autoloading 100mm mounts as their predecessors.

Modernizations

None.

Naval service

No significant events.
