No2201 (project 022) fast attack craft (missile) (2004-2010)

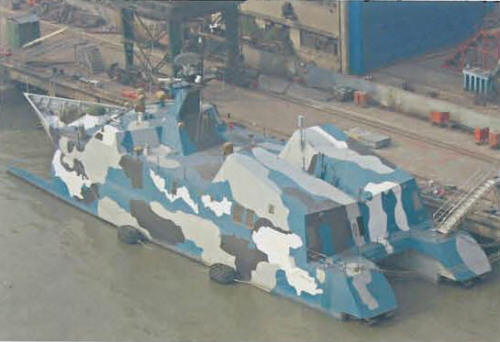

2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 2101 | 2005-10 | in service (2019) | |||||
| 2102 | 2005-10 | in service (2019) | |||||
| 2103 | 2005-10 | in service (2019) | |||||
| 2104 | 2005-10 | in service (2019) | |||||
| 2105 | 2005-10 | in service (2019) | |||||
| 2106 | 2005-10 | in service (2019) | |||||
| 2107 | 2005-10 | in service (2019) | |||||
| 2108 | 2005-10 | in service (2019) | |||||
| 2109 | 2005-10 | in service (2019) | |||||
| 2110 | 2005-10 | in service (2019) | |||||
| 2111 | 2005-10 | in service (2019) | |||||
| 2112 | 2005-10 | in service (2019) | |||||
| 2113 | 2010s | in service (2019) | |||||
| 2114 | 2010s | in service (2019) | |||||
| 2115 | 2010s | in service (2019) | |||||
| 2116 | 2010s | in service (2019) | |||||
| 2201 | 2005-10 | in service (2019) | |||||
| 2202 | 2005-10 | in service (2019) | |||||
| 2203 | 2005-10 | in service (2019) | |||||
| 2204 | 2005-10 | in service (2019) | |||||
| 2205 | 2005-10 | in service (2019) | |||||
| 2206 | 2005-10 | in service (2019) | |||||
| 2207 | 2005-10 | in service (2019) | |||||
| 2208 | Qiuxin, Shanghai | 26.4.2004 | 2004 | in service (2019) | |||
| 2209 | Huangpu, Guangzhou | 2005 | in service (2019) | ||||
| 2210 | Lushun, Dalian | 2005 | in service (2019) | ||||
| 2211 | Qiuxin, Shanghai | 2005 | in service (2019) | ||||
| 2212 | 2005-10 | in service (2019) | |||||
| 2213 | 2005-10 | in service (2019) | |||||
| 2214 | 2005-10 | in service (2019) | |||||
| 2215 | 2005-10 | in service (2019) | |||||
| 2216 | 2005-10 | in service (2019) | |||||
| 2217 | 2005-10 | in service (2019) | |||||
| 2218 | 2005-10 | in service (2019) | |||||
| 2219 | 2005-10 | in service (2019) | |||||
| 2220 | 2005-10 | in service (2019) | |||||
| 2221 | 2005-10 | in service (2019) | |||||
| 2222 | 2005-10 | in service (2019) | |||||
| 2223 | 2005-10 | in service (2019) | |||||
| 2224 | 2005-10 | in service (2019) | |||||
| 2225 | 2005-10 | in service (2019) | |||||
| 2226 | 2005-10 | in service (2019) | |||||
| 2227 | 2005-10 | in service (2019) | |||||
| 2228 | 2005-10 | in service (2019) | |||||
| 2229 | 2010s | in service (2019) | |||||
| 2230 | 2010s | in service (2019) | |||||
| 2231 | 2010s | in service (2019) | |||||
| 2232 | 2010s | in service (2019) | |||||
| 2301 | 2005-10 | in service (2019) | |||||
| 2302 | 2005-10 | in service (2019) | |||||
| 2303 | 2005-10 | in service (2019) | |||||
| 2304 | 2005-10 | in service (2019) | |||||
| 2305 | 2005-10 | in service (2019) | |||||
| 2306 | 2005-10 | in service (2019) | |||||
| 2307 | 2005-10 | in service (2019) | |||||
| 2308 | 2005-10 | in service (2019) | |||||
| 2309 | 2005-10 | in service (2019) | |||||
| 2310 | 2005-10 | in service (2019) | |||||
| 2311 | 2005-10 | in service (2019) | |||||
| 2312 | 2005-10 | in service (2019) | |||||
| 2313 | 2005-10 | in service (2019) | |||||
| 2314 | 2005-10 | in service (2019) | |||||
| 2315 | 2005-10 | in service (2019) | |||||
| 2316 | 2005-10 | in service (2019) | |||||
| 2317 | 2005-10 | in service (2019) | |||||
| 2318 | 2005-10 | in service (2019) | |||||
| 2319 | 2005-10 | in service (2019) | |||||
| 2320 | 2005-10 | in service (2019) | |||||
| 2321 | 2005-10 | in service (2019) | |||||
| 2322 | 2005-10 | in service (2019) | |||||
| 2323 | 2005-10 | in service (2019) | |||||
| 2324 | 2005-10 | in service (2019) | |||||
| 2325 | 2005-10 | in service (2019) | |||||
| 2326 | 2005-10 | in service (2019) | |||||
| 2327 | 2005-10 | in service (2019) | |||||
| 2328 | 2005-10 | in service (2019) | |||||
| 2329 | 2005-10 | in service (2019) | |||||
| 2330 | 2005-10 | in service (2019) | |||||
| 2331 | 2005-10 | in service (2019) | |||||
| 2332 | 2010s | in service (2019) | |||||
| 2333 | 2010s | in service (2019) | |||||
| 2334 | 2010s | in service (2019) |
Technical data
| Displacement standard, t | 200 |
|---|---|
| Displacement full, t | 220 |
| Length, m | 42.6 |
| Breadth, m | 12.2 |
| Draught, m | 1.50 |
| No of shafts | 4 waterjets |
| Machinery | 2 diesels |
| Power, h. p. | 6900 |
| Max speed, kts | 36 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1800(18) |
| Armament | 2 x 4 Ying Ji-83 SSM (8 C-803), 1 x 6 - 30/54 AK-630 |
| Electronic equipment | type 348, type 765, HEOS-300 e/o director, type 826 ECM suite, 2x type 945 decoy RL |
| Complement | 14 |
Standard scale images
No 2101 2010
Graphics
2008
Project history
Aluminium alloy catamaran wave-piercing hull. Based on a civil design from AMD Marine Consulting, Australia, and militarized by Guangzhou Sea Bus International. Design includes numerous signature reduction and stealth features.
Modernizations
None.
Naval service
No significant events.
