JIUSHA (project 037IG) fast attack craft (missile) (1991-1999)

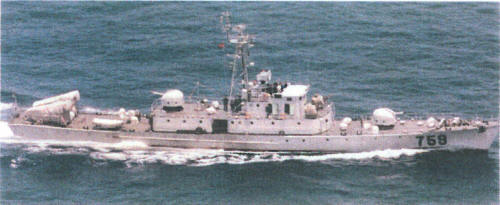

No 759 2002

Ships


Name No Yard No Builder Laid down Launched Comp Fate
莱阳 [Laiyang] 651   Qiuxin SY, Shanghai // Huangpu SY, Shanghai     1991 in service (2019)
莱西 [Laixi] 652   Qiuxin SY, Shanghai // Huangpu SY, Shanghai     1997 in service (2019)
曲阜 [Qufu] 653   Qiuxin SY, Shanghai // Huangpu SY, Shanghai     1997 in service (2019)
成武 [Chengwu] 654   Qiuxin SY, Shanghai // Huangpu SY, Shanghai     1998 in service (2019)
乳山 [Rushan] 655   Qiuxin SY, Shanghai // Huangpu SY, Shanghai     1998 in service (2019)
寿光 [Shouguang] 656   Qiuxin SY, Shanghai // Huangpu SY, Shanghai     1998 in service (2019)
金沙 [Jiusha] 751   Qiuxin SY, Shanghai // Huangpu SY, Shanghai 29.5.1990 30.12.1990 30.8.1991 in service (2019)
三都 [Yuqing] 752   Qiuxin SY, Shanghai // Huangpu SY, Shanghai     1992 stricken 2014
东安 [Dongan] 753   Qiuxin SY, Shanghai // Huangpu SY, Shanghai     1995 in service (2019)
余庆 [Linwu] 754   Qiuxin SY, Shanghai // Huangpu SY, Shanghai     1996 in service (2019)
潮阳 [Chaoyang] 755   Qiuxin SY, Shanghai // Huangpu SY, Shanghai     1993-97 in service (2019)
福鼎 [Chenghai] 756   Qiuxin SY, Shanghai // Huangpu SY, Shanghai     1993-97 in service (2019)
古田 [Gutian] 757   Qiuxin SY, Shanghai // Huangpu SY, Shanghai     1993 in service (2019)
永春 [Yongshun] 758   Qiuxin SY, Shanghai // Huangpu SY, Shanghai     1995-97 in service (2019)
福清 [Fuqing] 759   Qiuxin SY, Shanghai // Huangpu SY, Shanghai     1994 in service (2019)
长乐 [Changle] 760   Qiuxin SY, Shanghai // Huangpu SY, Shanghai     1995-97 in service (2019)
龙岩 [Longyan] 764   Qiuxin SY, Shanghai // Huangpu SY, Shanghai     1996 in service (2019)
上杭 [Hangtingdao] 765   Qiuxin SY, Shanghai // Huangpu SY, Shanghai     1996 in service (2019)
福鼎 [Fuding] 766   Qiuxin SY, Shanghai // Huangpu SY, Shanghai     1996 in service (2019)
福安 [Fuan] 767   Qiuxin SY, Shanghai // Huangpu SY, Shanghai     1995-97 in service (2019)


Technical data


Displacement standard, t
Displacement full, t

478

Length, m

62.0

Breadth, m

7.20

Draught, m

2.24 mean

No of shafts

4

Machinery

4 PR 230ZC diesels

Power, h. p.

13200

Max speed, kts

32

Fuel, t

diesel oil

Endurance, nm(kts)

2000(14)

Armament

2 x 2 Ying Ji-8A SSM (4 C-801), 2 x 2 - 37/63 type 76A, 2 x 2 - 14.5/93

Electronic equipment

type 723, type 352C, type 341 radars, ECM suite

Complement

60



Standard scale images


<i>Jiusha </i>2000
Jiusha 2000


Graphics


No 759 2002
No 759 2002


Project history

FAC(M) variant of Type 037 patrol boat.

Modernizations

None.

Naval service

No significant events.

© Ivan Gogin, 2016-19
