fighting ships of the world

PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)

COASTAL FORCES

No251 (project 122-bis / type 6604) large patrol craft (1952/1955, 1956-1957)

Taizhou 1960

Name No Builder Laid down Launched Comp Fate
德州 <Sizhou> (ex-ΑΞ-379 <BO-379>) 611 340 Yd, Zelenodolsk, USSR 2/1952 3/7/1952 10/1952 // 7/1955 stricken early 1990s
胶州 <Kiaozhou> (ex-ΑΞ-380 <BO-380>) 612 340 Yd, Zelenodolsk, USSR 2/1952 29/4/1952 12/1952 // 7/1955 stricken early 1990s
常州 <Changzhou> (ex-ΑΞ-393 <BO-393>) 613 340 Yd, Zelenodolsk, USSR 7/1952 6/10/1952 4/1953 // 7/1955 stricken early 1990s
通州 <Tungzhou> (ex-ΑΞ-395 <BO-395>) 614 340 Yd, Zelenodolsk, USSR 7/1952 25/9/1952 5/1953 // 7/1955 stricken early 1990s
温州 <Wengzhou> (ex-ΑΞ-396 <BO-396>) 615 340 Yd, Zelenodolsk, USSR 7/1952 1/10/1952 6/1953 // 7/1955 stricken early 1990s
泰州 <Taizhou> (ex-ΑΞ-397 <BO-397>) 616 340 Yd, Zelenodolsk, USSR 8/1952 13/10/1952 5/1953 // 7/1955 stricken early 1990s
(ex-ΑΞ-473 <BO-473>) 257 340 Yd, Zelenodolsk, USSR // Guangzhou SY 11/1954 1955 1956 stricken early 1990s
(ex-ΑΞ-478 <BO-478>) 258 340 Yd, Zelenodolsk, USSR // Guangzhou SY 1/1955 1955 1956 stricken early 1990s
  262 Huangpu SY, Guangzhou     1957 stricken early 1990s
  263 Huangpu SY, Guangzhou     1957 stricken early 1990s
  630 Huangpu SY, Guangzhou     1957 stricken early 1990s
  633 Huangpu SY, Guangzhou     1957 stricken early 1990s
  634 Hudong SY, Shanghai     1957 stricken early 1990s
  635 Hudong SY, Shanghai     1957 stricken early 1990s
  651 Hudong SY, Shanghai     1957 stricken early 1990s
  652 Hudong SY, Shanghai     1957 stricken early 1990s
  653 Hudong SY, Shanghai     1957 stricken early 1990s
  654 Hudong SY, Shanghai     1957 stricken early 1990s
  655 Hudong SY, Shanghai     1957 stricken early 1990s
  656 Hudong SY, Shanghai     1957 stricken early 1990s



Displacement standard, t

289

Displacement full, t

325

Length, m

49.5 wl 51.7 oa

Breadth, m

6.60

Draught, m

2.19

No of shafts

3

Machinery

9D diesels

Power, h. p.

3300

Max speed, kts

20

Fuel, t

18

Endurance, nm(kts)

3000(12)

Armament

Soviet built: 1 x 1 - 85/52 90K, 2 x 1 - 37/73 70K, 2 x 2 - 12.7/79, 2 DCT, 2 DCR (60), 18 mines

Chinese built: 1 x 1 - 85/52 90K, 2 x 1 - 37/73 70K, 3 x 2 - 14.5/93, 2 x 5 - 250 RBU-1200 DCT, 2 DCR (36), 10 mines

Sensors

Gyuys or Zarnitsa radar, Tamir-9 or Tamir-10 or Tamir-11 sonar

Complement

54

Ship project history: Former Soviet Project 122bis submarine chasers, 6 craft were transferred from the Soviet Navy and 14 were built in China from Soviet-supplied assembly kits.

Modernizations: None.

Naval service: No significant events.

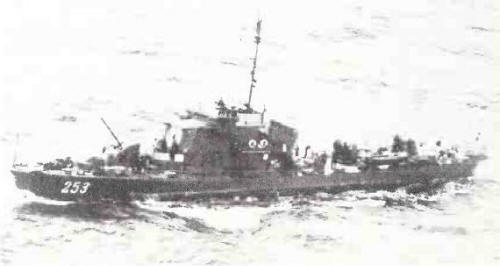

253 1986
