SANKT GEORG armoured cruiser (1905)

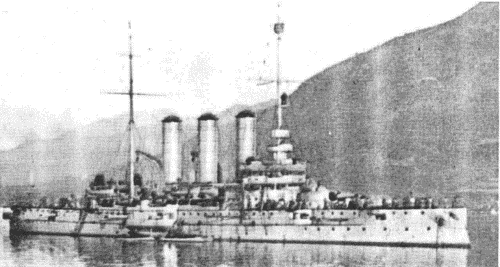

Sankt Georg 1916

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Sankt Georg     Marinearsenal Pola 11.3.1901 8.12.1903 21.7.1905 to United Kingdom 1920, BU


Technical data


Displacement normal, t

7289

Displacement full, t8070
Length, m

124.3 oa 123.2 wl

Breadth, m

19.0

Draught, m

6.83

No of shafts

2

Machinery

2 4-cyl VTE, 12 Yarrow boilers

Power, h. p.

15000

Max speed, kts

22

Fuel, t

coal 1103

Endurance, nm(kts)4500(10)
Armour, mmbelt: 210 - 165, turrets: 210, bulkheads: 190, deck: 50 - 40, CT: 200
Armament

1 x 2 - 238/37 G. L/40 S., 5 x 1 - 190/40 G. L/42, 4 x 1 - 149/37 G. L/40 S. C.96, 2 x 1 - 66/16 G. L/18, 6 x 1 - 47/40 SFK L/44 S, 2 x 1 - 47/30 SFK L/33 H, 2 x 1 - 8.80, 2 - 450 TT (beam)

Complement

535



Standard scale images

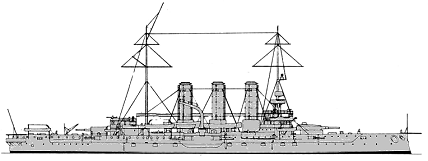

<i>Sankt Georg </i>1905
Sankt Georg 1905


Graphics


<i>Sankt Georg </i>1916
Sankt Georg 1916


Project history

Improved version of previous ship.

Ship protection

The belt was 210-165mm. Main guns turrets had up to 210mm protection, 19cm guns were protected by up to 190mm casemates. There was 50-40mm protective deck. CT had 200mm sides.

Modernizations

1916: + 1 x 1 - 66/47 G. L/50 BAG

Naval service

Sankt Georg was ceded as war reparation to UK, but sold to Italy and scrapped there.
