XXVII torpedo boats (1886-1888)
XXXI
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
XXVII - XXXII |
Marinearsenal Pola: XXVII - XXXII |
1886: XXVII, XXVIII 1887: XXIX, XXX 1888: XXXI, XXXII |
XXVII (20.2.1908) |
none |
1904: XXVIII - XXXI 1909: XXXII |
Technical data
| Displacement normal, t | 47 |
|---|---|
| Displacement full, t | 55 |
| Length, m | 34.3 wl |
| Breadth, m | 3.80 |
| Draught, m | 1.70 |
| No of shafts | 1 |
| Machinery | 1 VC, 1 locomotive boiler |
| Power, h. p. | 600 |
| Max speed, kts | 18 - 19 |
| Fuel, t | coal |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 37/20 SFK L/23 H, 2 - 356 TT (bow) |
| Complement | 16 |
Standard scale images

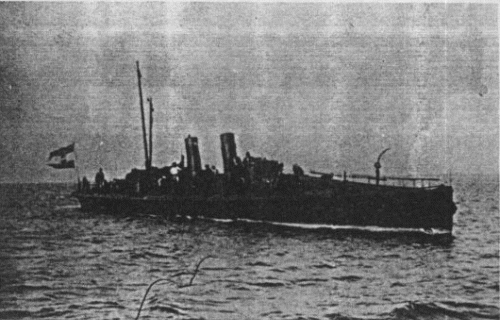

XXVII 1886
Graphics
XXXI
Project history
II class, C-type.
Modernizations
1907, XXVII: - 2 - 356 TT
Naval service
No significant events.
