M117 inshore minesweepers (1966-1968)

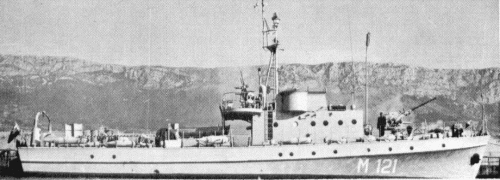

Gradats 1968
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| - | M117 | Yugoslavia | 1966 | deleted 1990-93 | |||
| - | M118 | Yugoslavia | 1966-68 | deleted 1990-93 | |||
| Маун [Maun] | M119 | Yugoslavia | 1966-68 | deleted 1980 | |||
| Граjац [Grayats] | M120 | Yugoslavia | 1966-68 | deleted 1990-93 | |||
| Градац [Gradats] | M121 | Yugoslavia | 1966-68 | deleted 1990-93 | |||
| Ирет [Iret] | M122 | Yugoslavia | 1968 | deleted 1990-93 |
Technical data
| Displacement standard, t | 120 |
|---|---|
| Displacement full, t | 131 |
| Length, m | 30.0 |
| Breadth, m | 5.50 |
| Draught, m | 1.50 |
| No of shafts | 2 |
| Machinery | 2 General Motors diesels |
| Power, h. p. | 1000 |
| Max speed, kts | 12 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 40/60 Mk 3, 1 x 2 - 12.7/90, mechanical minesweeping gear |
| Electronic equipment | Decca 45 radar |
| Complement | 25 |
Standard scale images
M117 1975
Graphics
Gradats 1968
Project history
Yugoslav design of inshore minesweeper, used mainly for patrol duties.
Modernizations
None.
Naval service
No significant events.
