DJČ621 landing craft (1983-1987)





DJČ412 2003

Ships


Names Builders Commissioned Losses Transfers Discarding

ДJЧ621 [DJČ621], 2003- ДJЧ414 [DJČ414]

ДJЧ622-624 [DJČ622-624]

ДJЧ625 [DJČ625], 2003- ДJЧ412 [DJČ412]

ДJЧ626-629 [DJČ626-629]

ДJЧ630 [DJČ630], 2003- ДJЧ413 [DJČ413]

ДJЧ631 [DJČ631], 2003- ДJЧ415 [DJČ415]

ДJЧ632 [DJČ632], 2003- ДJЧ411 [DJČ411]

Greben, Vela Luka: DJČ621-632

1983-1985: DJČ621-631

1987: DJČ632

DJČ622 (sunk 1991, to Croatia (Lupac)), DJČ623 (captured by Croatia 1991, No 105), DJČ624 (captured by Croatia 1991, No 106)

Montenegro, 2006: DJČ627, 628 (DJČ627, 628)

1991: DJČ629

2000s: DJČ626

in service (2019): DJČ411-415



Technical data


Displacement standard, t
Displacement full, t

48

Length, m22.3
Breadth, m4.84
Draught, m1.07 hull 1.58 propellers
No of shafts2 waterjets
Machinery2 MTU diesels
Power, h. p.1740
Max speed, kts30
Fuel, tdiesel oil
Endurance, nm(kts)320(22)
Armament

2 x 1 - 20/90 M-71, 1 x 1 - 30/10 PB-30 grenade launcher

Military load

40 troops or 15t cargo

Electronic equipmentDecca 101 radar
Complement8


Graphics

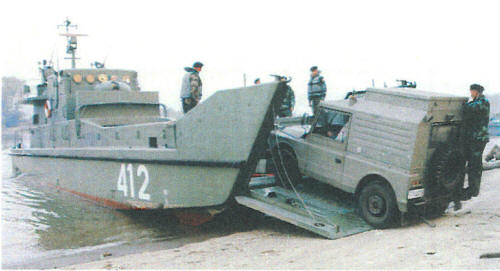

<i>DJČ412 </i>2003
DJČ412 2003


Project history

Type 22. GRP construction. 32m² cargo area and bow ramp.

Modernizations

None.

Naval service

No significant events.
